FHRY-250-A

FHRY-A -Flanged Yoke High Roller

Please call 616-842-8760 for price and availability

Specifications

ID FHRY-250-A
Roller O.D. A 2.500
Tread Width B 1.500
Flange I 3 3/16
Bore Diameter d 0.750
Overall Width W 1.562
End Plate & Flange Diameter P 1 1/4
Max Static Capacity (lbf) 7,630
Basic Dynamic Rating (lbf) 10,880
Thrust Capacity (lbf) 4,570
Ball(BB) or Tapered(TRB) Roller Bearing TRB

Downloads

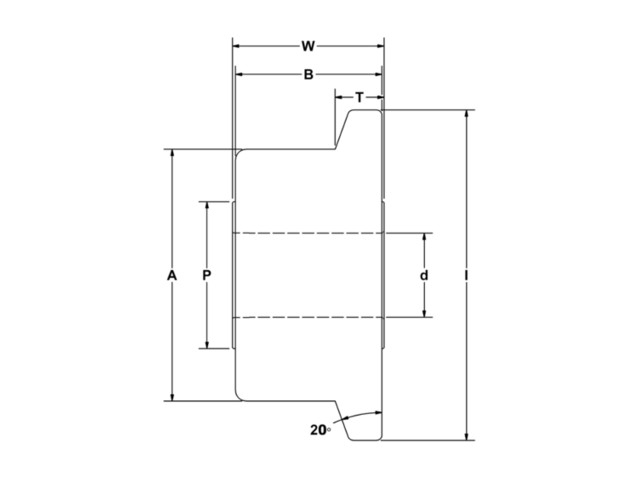

FHRY-250-A 2D CAD Drawing

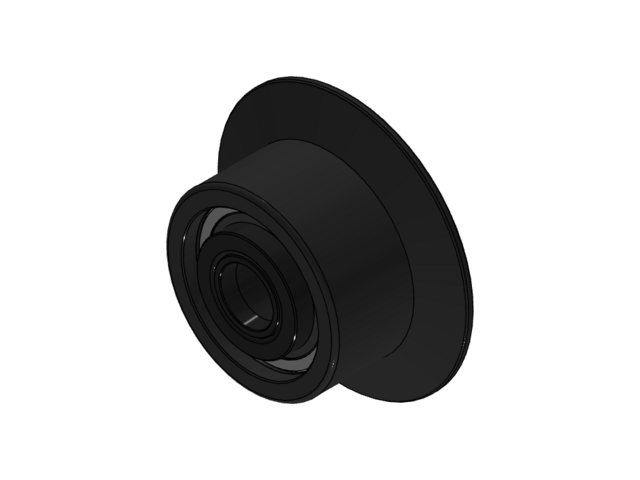

3D View
