FHRY-200-A

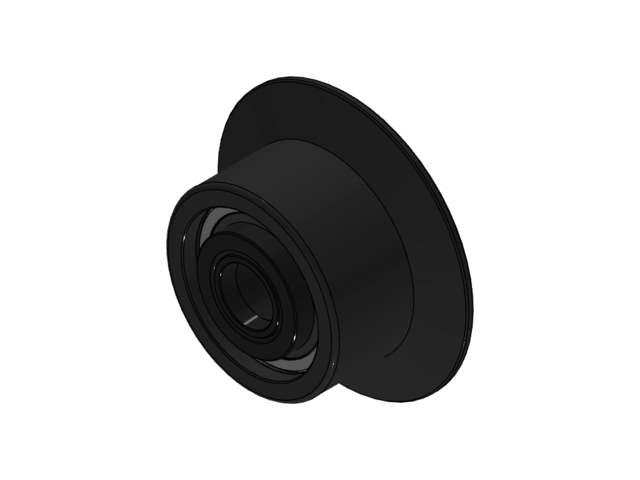

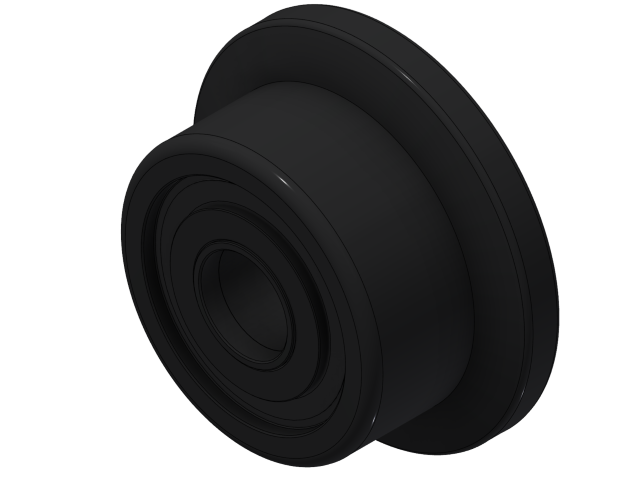

FHRY-A -Flanged Yoke High Roller

2D Drawings

FHRY-200-A 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

Specifications

ID FHRY-200-A
Roller O.D. A 2.000
Tread Width B 1.250
Flange Diameter I 2 11/16
Flange Width T 0.312
Bore Diameter d 0.625
Overall Width W 1.313
End Plate & Flange Diameter P 1 1/8
Max Static Capacity (lbf) 1,810
Basic Dynamic Rating (lbf) 3,400
Thrust Capacity (lbf) 1,120
Ball(BB) or Tapered(TRB) Roller Bearing BB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
