FHRE-500-A

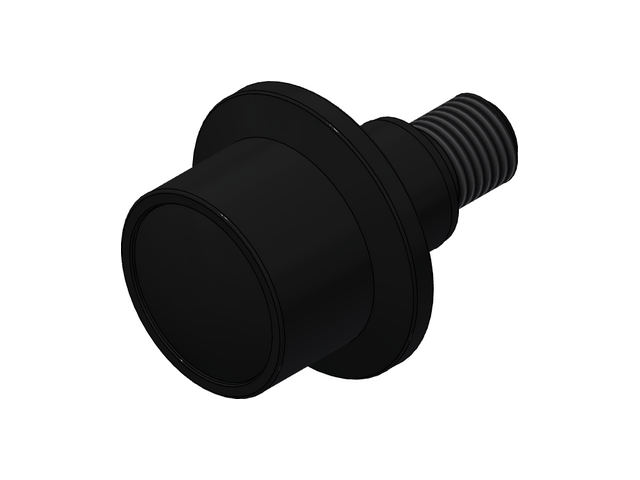

FHRE-A -Flanged High Roller Eccentric

PDF Download

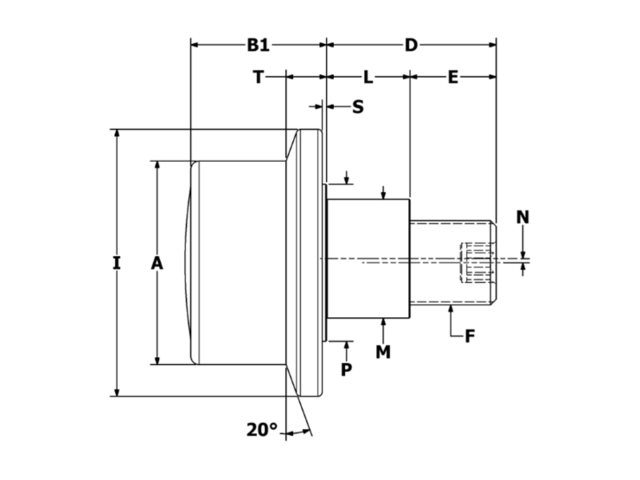

FHRE-500-A 2D CAD Drawing

Specifications

ID FHRE-500-A
Roller O.D. A 5.000
Flange I 5.938
Roller B1 3.000
Stud Length D 4.500
Thread Length E 2.375
Thread Class 2A F 2-12
Eccentric Sleeve Length L 2.125
Eccentric Sleeve Diameter M 2.625
Eccentric Offset N 0.060
Endplate Diameter P 3.250
Endplate Stickout S 0.062
Basic Dynamic Rating (lbf) 33,290
Dynamic Thrust Load (lbf) 32,500
Max Static Capacity (lbf) 51,900
Ball(BB) or Tapered(TRB) Roller Bearing TRB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
