FHRE-450-A

FHRE-A -Flanged High Roller Eccentric

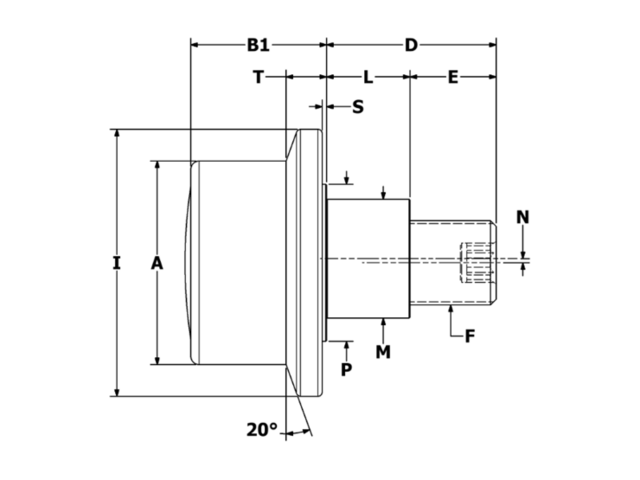

Specifications

ID FHRE-450-A
Roller O.D. A 4.500
Flange I 5.438
Roller B1 2.000
Stud Length D 2.750
Thread Length E 1.395
Thread Class 2A F 2 1/4-12
Eccentric Sleeve Length L 1.355
Eccentric Sleeve Diameter M 1.812
Eccentric Offset N 0.060
Endplate Diameter P 2.312
Endplate Stickout S 0.062
Basic Dynamic Rating (lbf) 14,270
Dynamic Thrust Load (lbf) 12,000
Max Static Capacity (lbf) 20,000
Ball(BB) or Tapered(TRB) Roller Bearing TRB

Downloads

FHRE-450-A 2D CAD Drawing

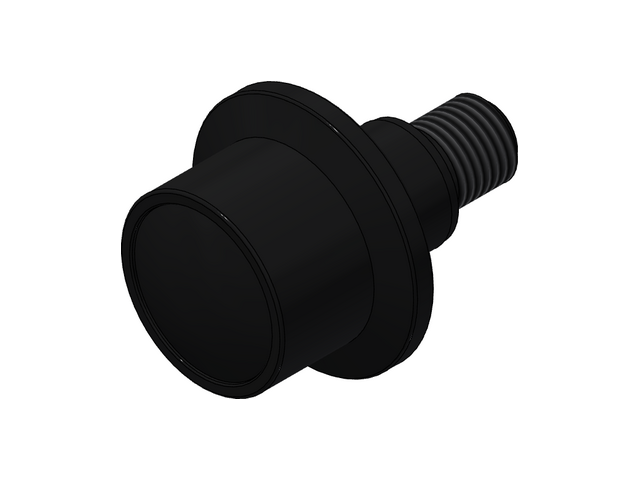

3D View
