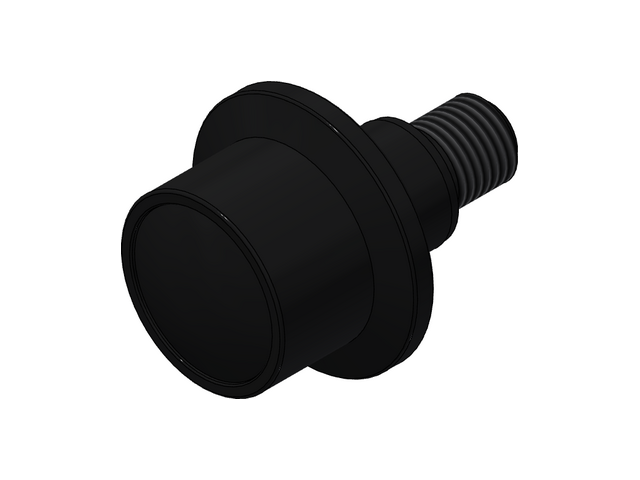

FHRE-A -Flanged High Roller Eccentric

2D Drawings

FHRE-350-A 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

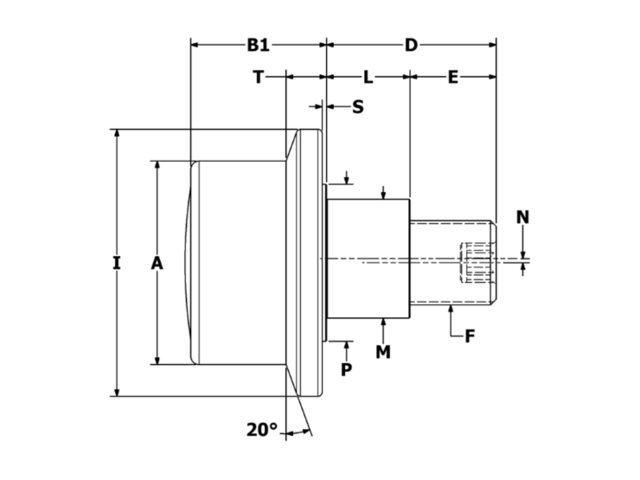

Roller O.D. A 3.500
Flange Diameter I 4.438
Flange Width T 0.594
Roller Width B1 2.000
Stud Length D 2.750
M.E.T. E 1.395
Thread Class 2A F 1 1/4-12
Bushing Length L 1.355
Bushing Diameter M 1.812
Eccentric Offset N 0.060
Endplate Diameter P 2.312
Endplate Stickout S 0.062
Hex Size X 1/2
Basic Dynamic Rating 14,270
Dynamic Thrust Load 12,000
Max Static Capacity 20,000
Torque 50
Ball(BB) or Tapered(TRB) Roller Bearing TRB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
