FHRE-325-A

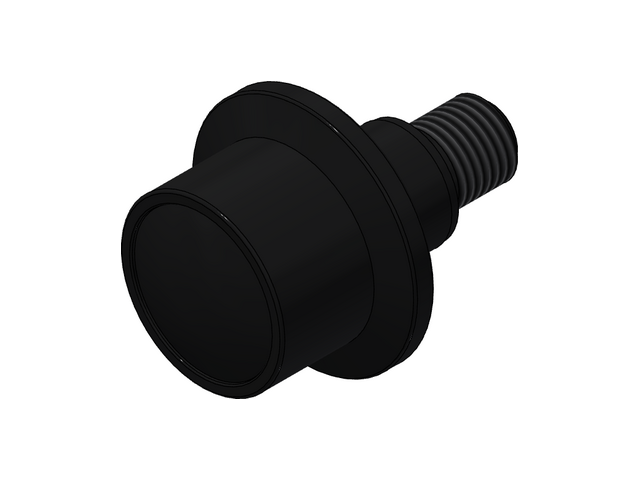

FHRE-A -Flanged High Roller Eccentric

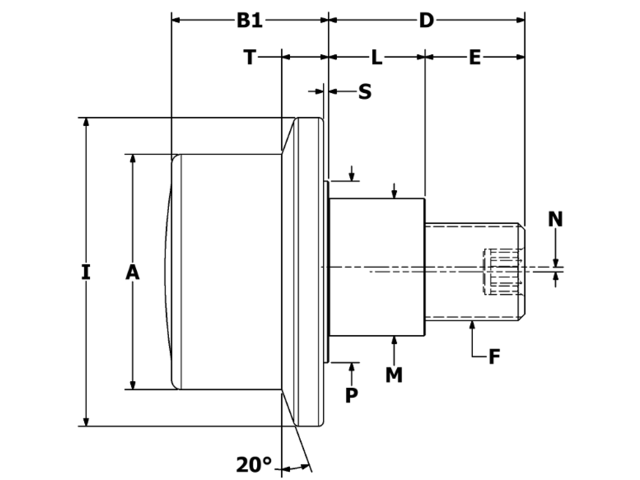

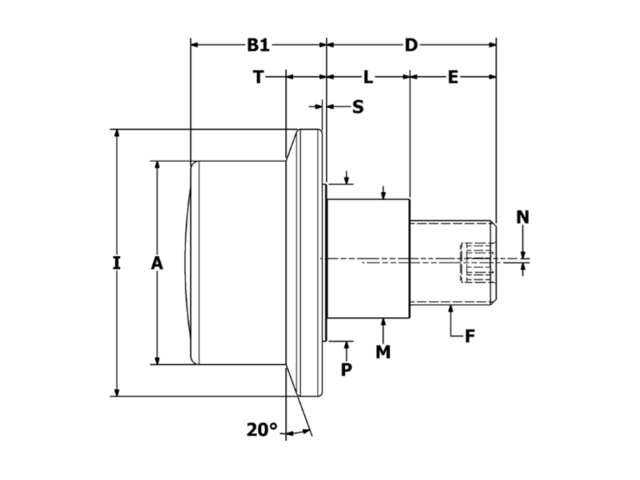

Specifications

ID FHRE-325-A
Roller O.D. A 3.250
Flange I 4.188
Roller B1 2.000
Stud Length D 2.500
Thread Length E 1.270
Thread Class 2A F 1 1/4-12
Eccentric Sleeve Length L 1.230
Eccentric Sleeve Diameter M 1.750
Eccentric Offset N 0.060
Endplate Diameter P 2.312
Endplate Stickout S 0.062
Basic Dynamic Rating (lbf) 14,290
Dynamic Thrust Load (lbf) 12,000
Max Static Capacity (lbf) 20,000
Ball(BB) or Tapered(TRB) Roller Bearing TRB
