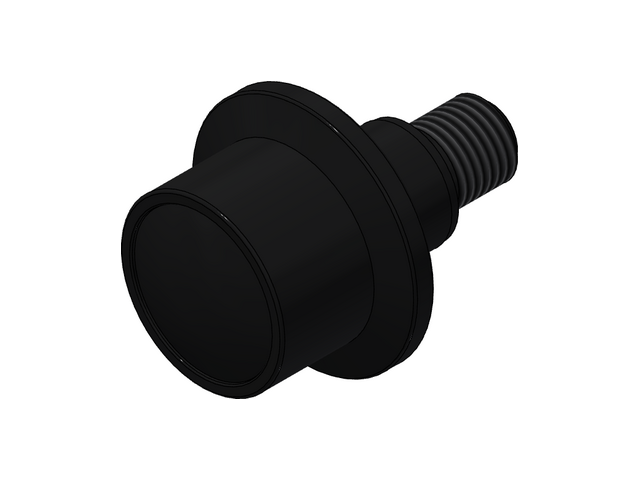

FHRE-A -Flanged High Roller Eccentric

2D Drawings

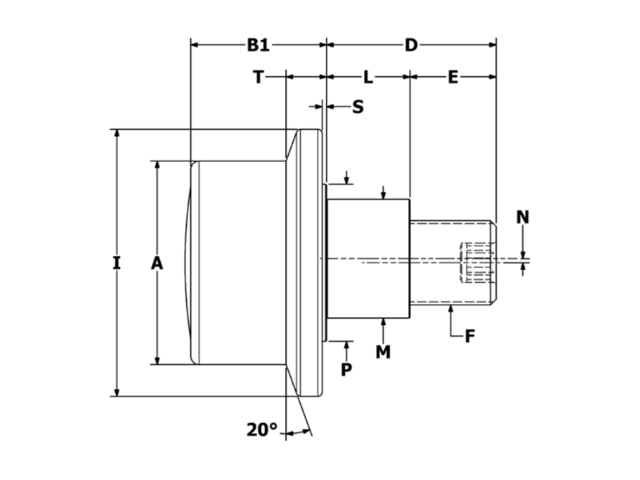

FHRE-300-A 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information


Roller O.D. A 3.000
Flange Diameter I 3.938
Flange Width T 0.594
Roller Width B1 2.000
Stud Length D 2.500
M.E.T. E 1.270
Thread Class 2A F 1 1/4-12
Bushing Length L 1.230
Bushing Diameter M 1.750
Eccentric Offset N 0.060
Endplate Diameter P 2.312
Endplate Stickout S 0.062
Hex Size X 1/2
Basic Dynamic Rating (lbf) 14,270
Dynamic Thrust Load (lbf) 12,000
Max Static Capacity (lbf) 20,000
Torque (ft-lb) 50
Ball(BB) or Tapered(TRB) Roller Bearing TRB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
