FHRE-175-A

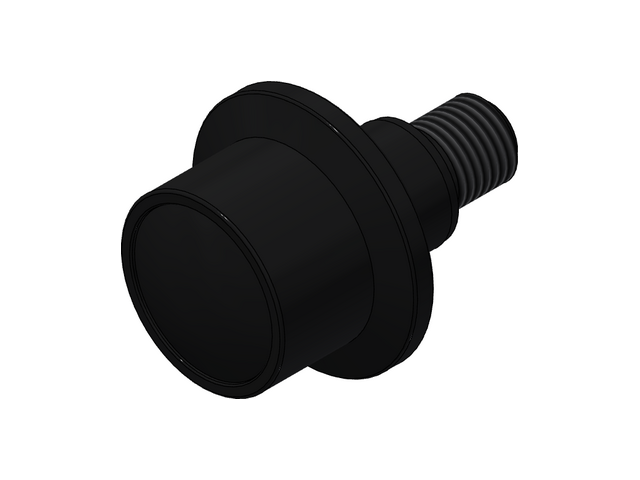

FHRE-A -Flanged High Roller Eccentric

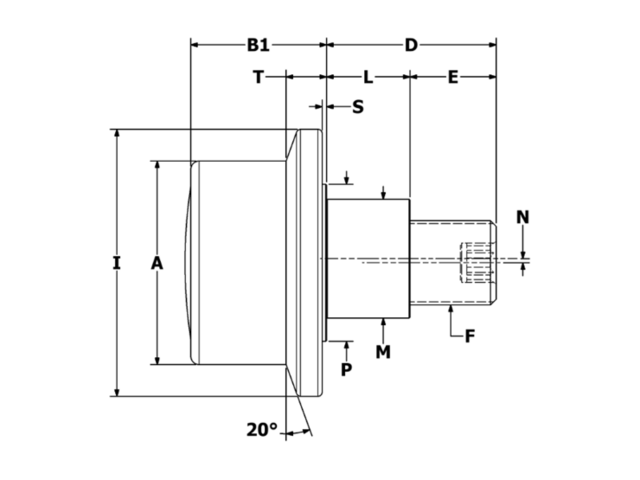

Specifications

ID FHRE-175-A
Roller O.D. A 1.750
Flange I 2.438
Roller B1 1.187
Stud Length D 1.750
Thread Length E 0.895
Thread Class 2A F 3/4-16
Eccentric Sleeve Length L 0.855
Eccentric Sleeve Diameter M 1.000
Eccentric Offset N 0.030
Endplate Diameter P 1.240
Endplate Stickout S 0.062
Basic Dynamic Rating (lbf) 2,760
Dynamic Thrust Load (lbf) 680
Max Static Capacity (lbf) 1,100
Ball(BB) or Tapered(TRB) Roller Bearing BB
