FHRE-125-A

FHRE-A -Flanged High Roller Eccentric

Please call 616-842-8760 for price and availability

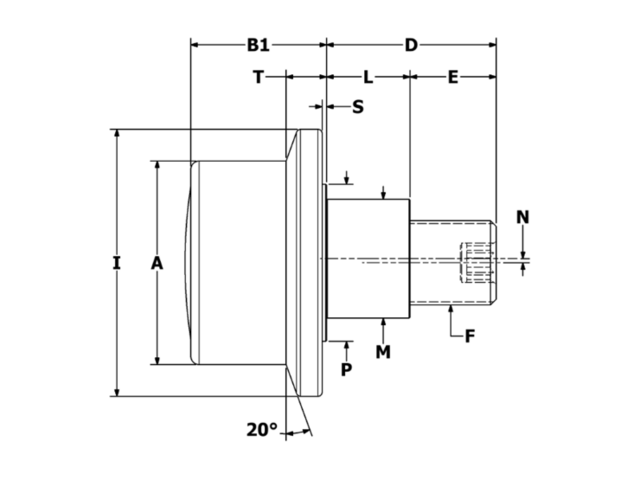

Specifications

ID FHRE-125-A
Roller O.D. A 1.250
Flange I 1.563
Roller B1 0.844
Stud Length D 1.250
Thread Length E 0.625
Thread Class 2A F 1/2-20
Eccentric Sleeve Length L 0.625
Eccentric Sleeve Diameter M 0.687
Eccentric Offset N 0.030
Endplate Diameter P 0.812
Endplate Stickout S 0.031
Basic Dynamic Rating (lbf) 1,350
Dynamic Thrust Load (lbf) 370
Max Static Capacity (lbf) 600
Ball(BB) or Tapered(TRB) Roller Bearing BB

Downloads

FHRE-125-A 2D CAD Drawing

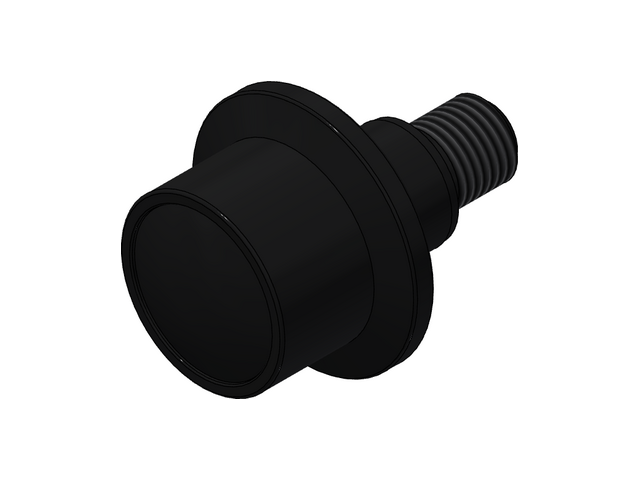

3D View
