FHR-450-A

FHR-A -Flanged High Roller

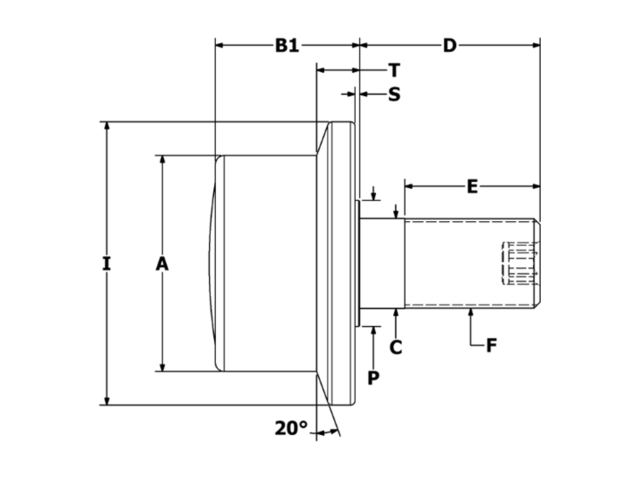

Specifications

ID FHR-450-A
Roller O.D. A 4.500
Flange I 5.438
Roller B1 2.000
Stud Diameter C 1.250
Stud Length D 2.750
M.E.T. E 1 3/4
Thread Class 2A F 1 1/4-12
Endplate Diameter P 1.750
Endplate Stickout S 0.062
Basic Dynamic Rating (lbf) 14,270
Dynamic Thrust Load (lbf) 12,000
Max Static Capacity (lbf) 20,000
Ball(BB) or Tapered(TRB) Roller Bearing TRB
