FHR-400-A

FHR-A -Flanged High Roller

2D Drawings

FHR-400-A 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

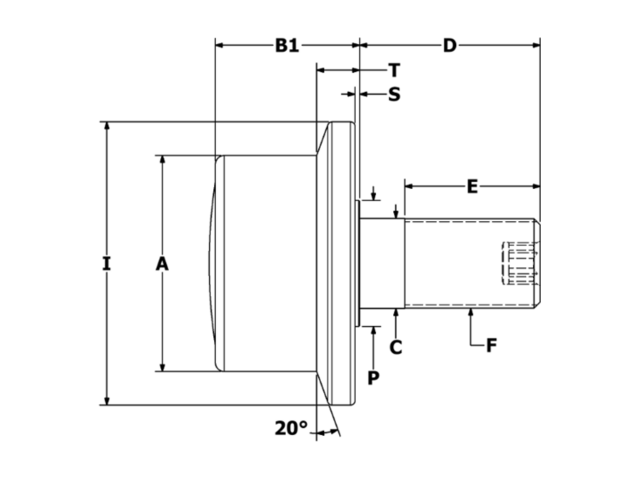

Specifications

ID FHR-400-A
Roller O.D. A 4.000
Flange I 4.938
Roller B1 2.000
Stud Diameter C 1.250
Stud Length D 2.750
M.E.T. E 1 3/4
Thread Class 2A F 1 1/4-12
Endplate Diameter P 1.750
Endplate Stickout S 0.062
Basic Dynamic Rating (lbf) 14,270
Dynamic Thrust Load (lbf) 12,000
Max Static Capacity (lbf) 20,000
Ball(BB) or Tapered(TRB) Roller Bearing TRB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
