FHR-275-A

FHR-A -Flanged High Roller

2D Drawings

FHR-275-A 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

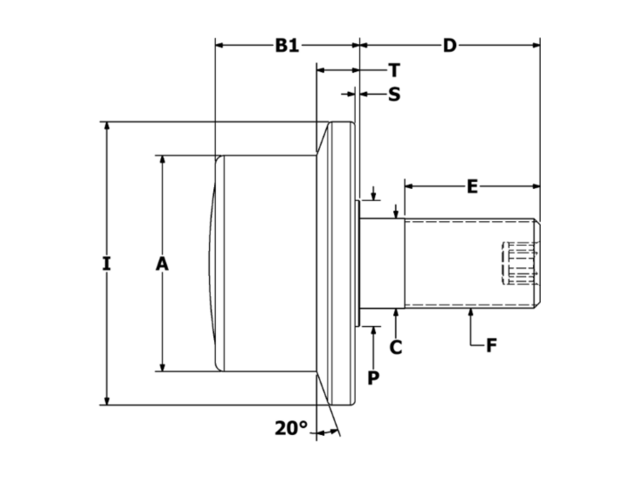

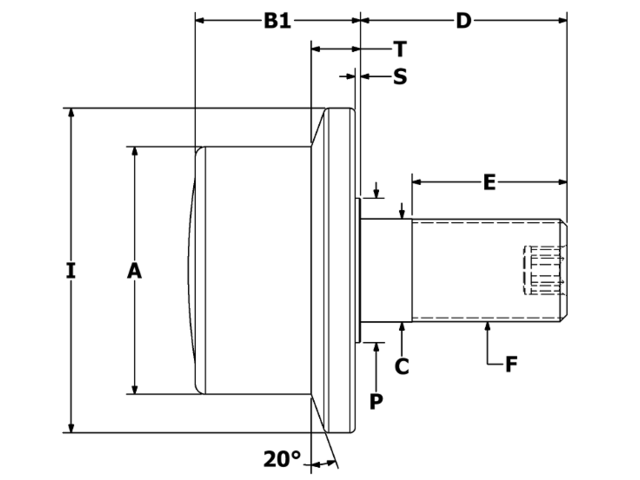

Specifications

ID FHR-275-A
Roller O.D. A 2.750
Flange I 3.438
Roller B1 1.687
Stud Diameter C 1.000
Stud Length D 2.250
M.E.T. E 1 1/2
Thread Class 2A F 1-14
Endplate Diameter P 1.250
Endplate Stickout S 0.062
Basic Dynamic Rating (lbf) 5,190
Dynamic Thrust Load (lbf) 1,400
Max Static Capacity (lbf) 2,270
Ball(BB) or Tapered(TRB) Roller Bearing BB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
