FHR-200-A

FHR-A -Flanged High Roller

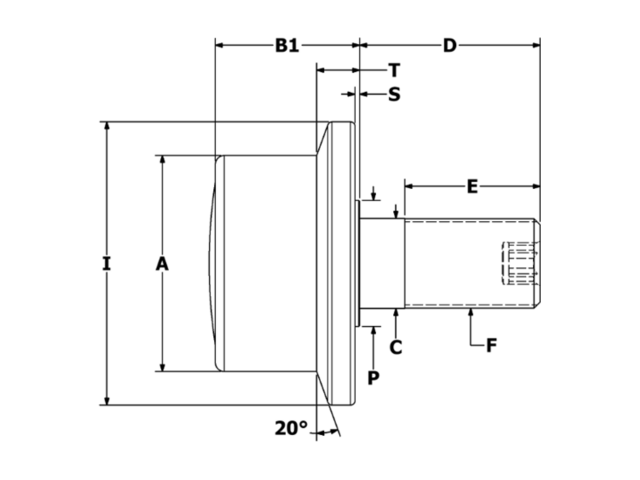

Specifications

ID FHR-200-A
Roller O.D. A 2.000
Flange I 2.688
Roller B1 1.687
Stud Diameter C 0.875
Stud Length D 2.000
M.E.T. E 1 1/8
Thread Class 2A F 7/8-14
Endplate Diameter P 1.000
Endplate Stickout S 0.062
Basic Dynamic Rating (lbf) 3,830
Dynamic Thrust Load (lbf) 1,000
Max Static Capacity (lbf) 1,620
Ball(BB) or Tapered(TRB) Roller Bearing BB
