FHR-A -Flanged High Roller

2D Drawings

FHR-137-A 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

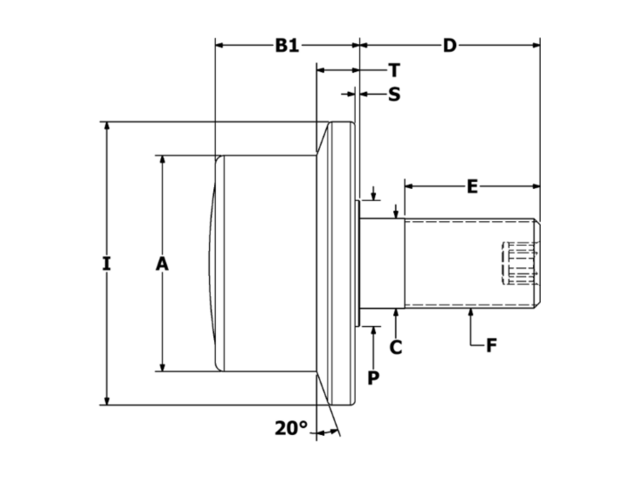

ID FHR-137-A
Roller O.D. A 1.375
Flange I 1.688
Roller B1 0.844
Stud Diameter C 0.500
Stud Length D 1.250
M.E.T. E 5/8
Thread Class 2A F 1/2-20
Endplate Diameter P 0.625
Endplate Stickout S 0.031
Basic Dynamic Rating (lbf) 1,350
Dynamic Thrust Load (lbf) 370
Max Static Capacity (lbf) 600
Ball(BB) or Tapered(TRB) Roller Bearing BB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
