FHR-100-A

FHR-A -Flanged High Roller

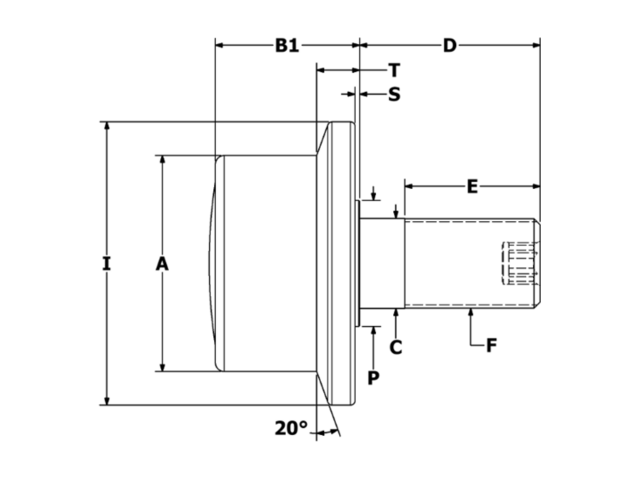

Specifications

ID FHR-100-A
Roller O.D. A 1.000
Flange I 1.375
Roller B1 0.781
Stud Diameter C 0.437
Stud Length D 1.000
M.E.T. E 1/2
Thread Class 2A F 7/16-20
Endplate Diameter P 0.500
Endplate Stickout S 0.031
Basic Dynamic Rating (lbf) 630
Dynamic Thrust Load (lbf) 140
Max Static Capacity (lbf) 230
Ball(BB) or Tapered(TRB) Roller Bearing BB
