CSY-48-S

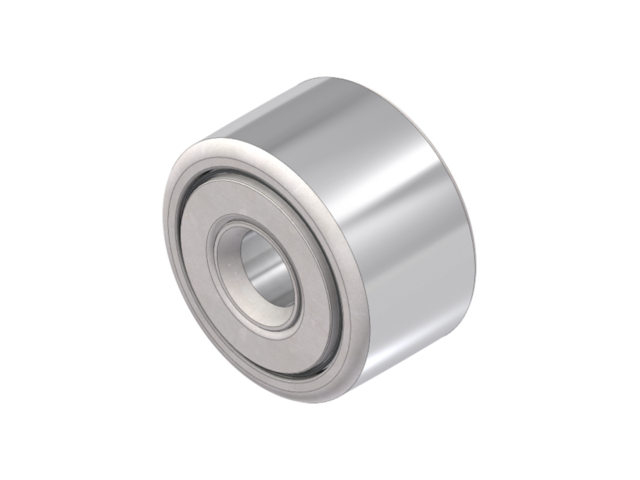

CSY-S -Standard Stainless Crowned Sealed Yolk Roller

PDF Download

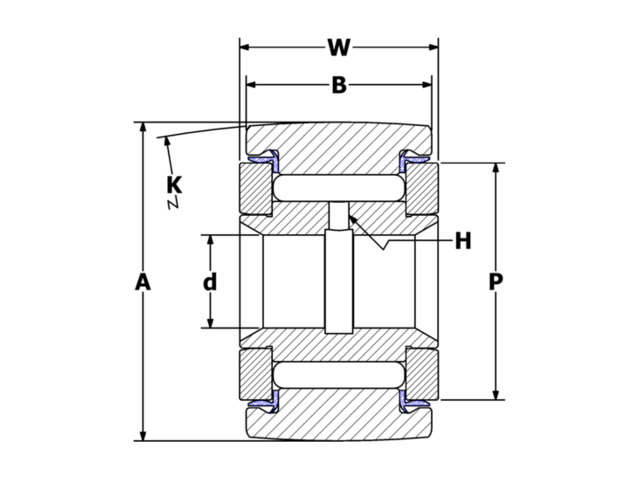

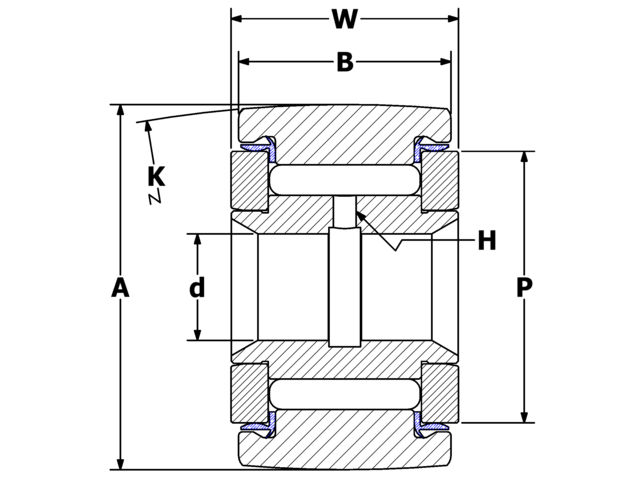

CSY-48-S 2D CAD Drawing

Specifications

ID CSY-48-S
Roller O.D. A 1.500
Roller Width B 0.875
Crown Radius K 20
Bore Diameter d 0.438
Overall Width W 0.9375
Oil Hole Diameter H 3/32
Min. Boss Diameter P 57/64
Shaft Diameter(Ø) Push Fit 0.4370
Shaft Diameter(Ø) Drive Fit 0.4376
Shaft Diameter(Ø) Press Fit 0.4378
Max Static Capacity (lbf) 11,200
Basic Dynamic Rating (lbf) 4,350
Limiting Speed (RPM) 2,500

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
