CSY-44-S

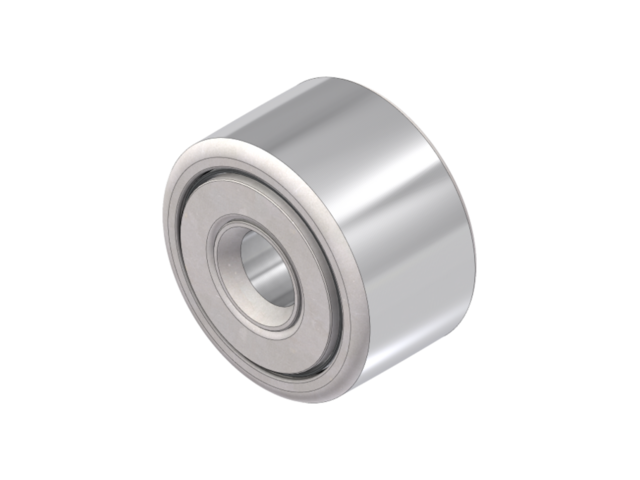

CSY-S -Standard Stainless Crowned Sealed Yolk Roller

PDF Download

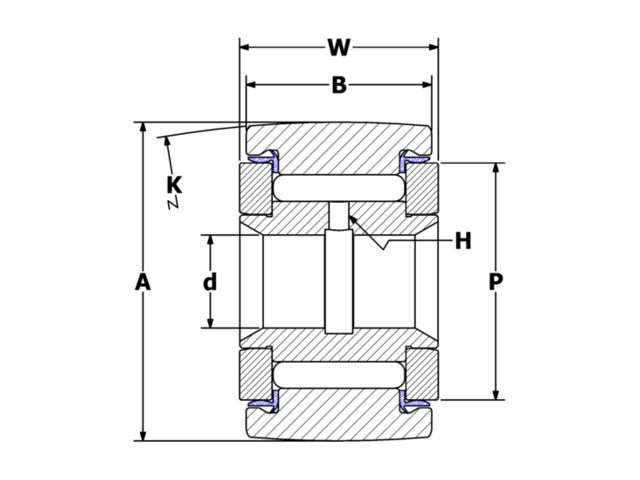

CSY-44-S 2D CAD Drawing

Specifications

ID CSY-44-S
Roller O.D. A 1.375
Roller Width B 0.750
Crown Radius K 14
Bore Diameter d 0.375
Overall Width W 0.8125
Oil Hole Diameter H 3/32
Min. Boss Diameter P 49/64
Shaft Diameter(Ø) Push Fit 0.3745
Shaft Diameter(Ø) Drive Fit 0.3751
Shaft Diameter(Ø) Press Fit 0.3753
Max Static Capacity (lbf) 7,700
Basic Dynamic Rating (lbf) 3,530
Limiting Speed (RPM) 2,800

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
