CSY-36-S

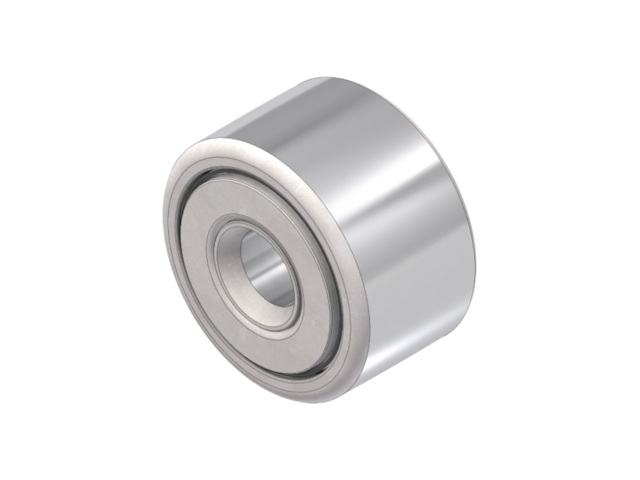

CSY-S -Standard Stainless Crowned Sealed Yoke Roller

2D Drawings

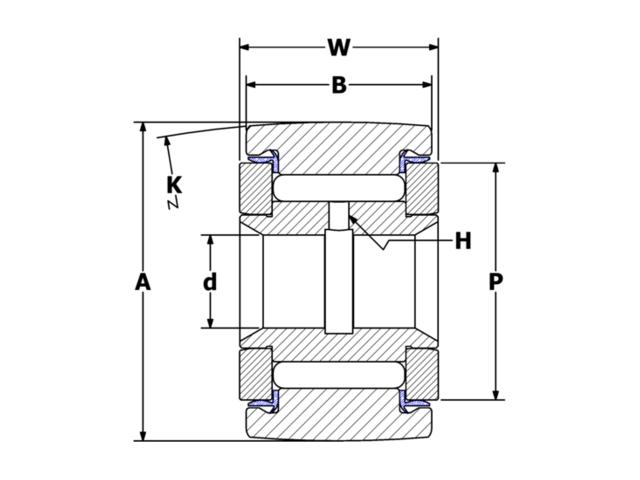

CSY-36-S 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

Specifications

ID CSY-36-S
Roller O.D. A 1.125
Roller Width B 0.625
Crown Radius K 12
Bore Diameter d 0.313
Overall Width W 0.6875
Oil Hole Diameter H 3/32
Min. Boss Diameter P 41/64
Shaft Diameter(Ø) Push Fit 0.3120
Shaft Diameter(Ø) Drive Fit 0.3126
Shaft Diameter(Ø) Press Fit 0.3128
Max Static Capacity (lbf) 5,400
Basic Dynamic Rating (lbf) 2,000
Limiting Speed (RPM) 3,400

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
