CSY-32-S

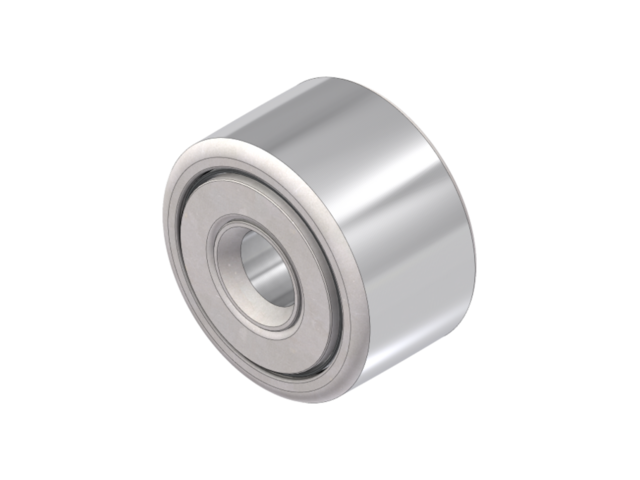

CSY-S -Standard Stainless Crowned Sealed Yolk Roller

PDF Download

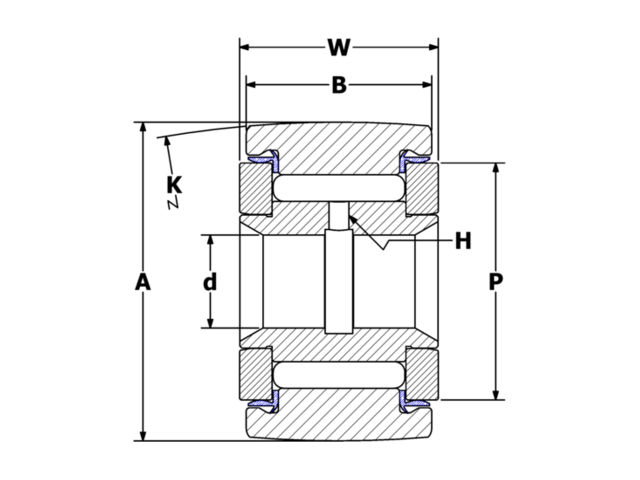

CSY-32-S 2D CAD Drawing

Specifications

ID CSY-32-S
Roller O.D. A 1.000
Roller Width B 0.625
Crown Radius K 12
Bore Diameter d 0.313
Overall Width W 0.6875
Oil Hole Diameter H 3/32
Min. Boss Diameter P 41/64
Shaft Diameter(Ø) Push Fit 0.3120
Shaft Diameter(Ø) Drive Fit 0.3126
Shaft Diameter(Ø) Press Fit 0.3128
Max Static Capacity (lbf) 5,400
Basic Dynamic Rating (lbf) 2,000
Limiting Speed (RPM) 4,800

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
