CSFHE-96-B

CSFHE-A -Standard Neverlube Cam Follower Crowned Eccentric

Please call 616-842-8760 for price and availability

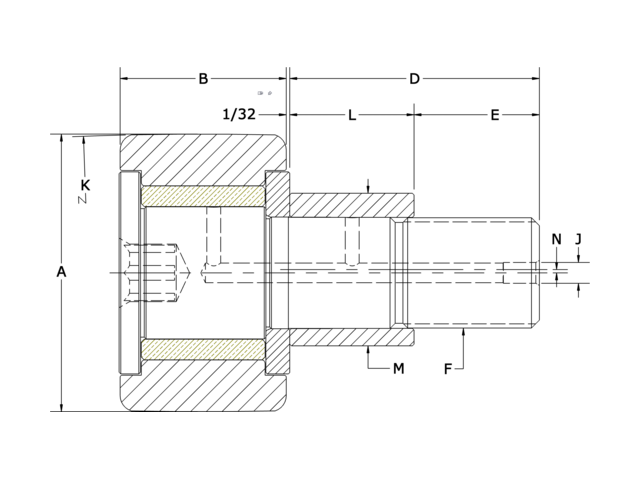

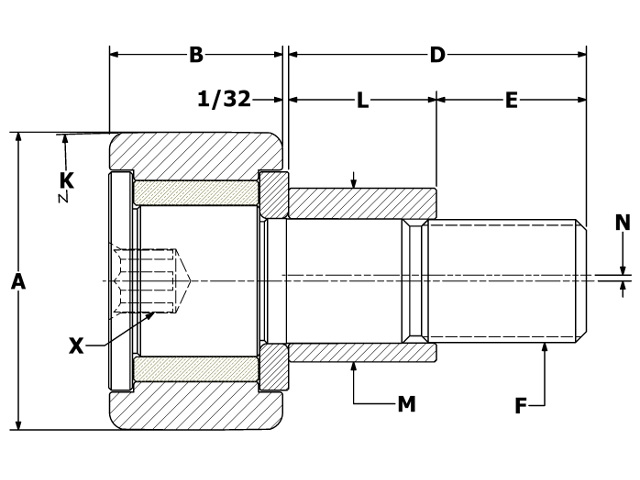

Specifications

New* CSFHE-96-B
Old CSFWE-96-A
Roller O.D. A 3.000
Roller Width B 1.750
Crown Radius K 30
Stud Diameter C 1.250
Stud Length D 2.500
Thread Length E 1 1/4
Thread Class 2A F 1 1/4-12
Hex Size X 1/2
Bushing Length L 1.250
Bushing Diameter M 1.750
Eccentric offset N 0.060
Min. Boss Diameter 1 3/4
Mounting Bore Diameter (recommended) 1.753
**Recom. Torque Inch Pounds 3,450
Load Factor 2.000

Downloads

CSFHE-96-B 2D CAD Drawing

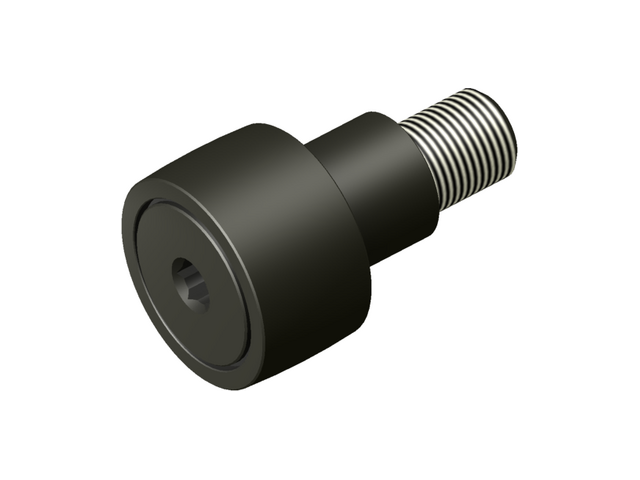

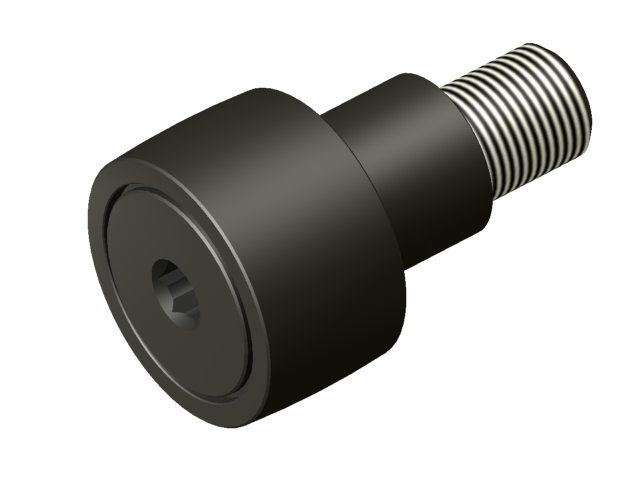

3D View
