CSFHE-64-A

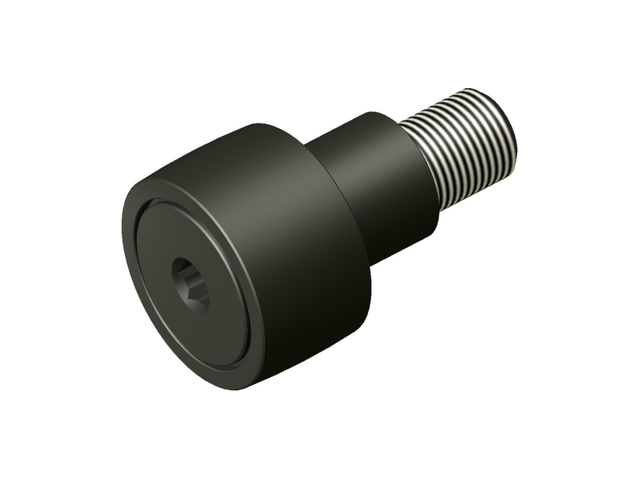

CSFHE-A -Standard Neverlube Cam Follower Crowned Eccentric

Please call 616-842-8760 for price and availability

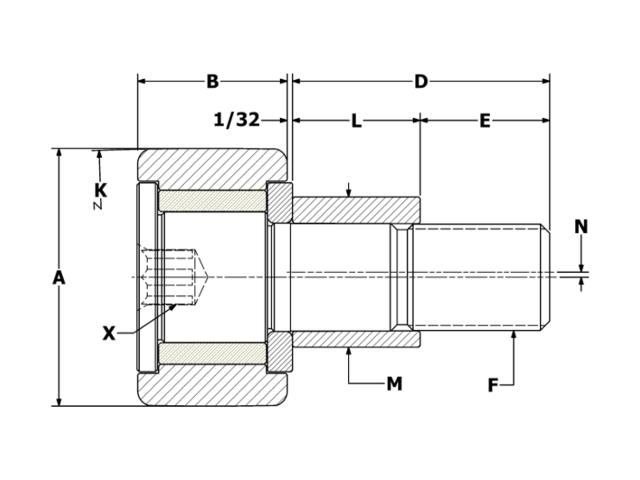

Specifications

New* CSFHE-64-A
Old CSFWE-64-A
Roller O.D. A 2.000
Roller Width B 1.250
Crown Radius K 24
Stud Diameter C 0.875
Stud Length D 2.000
Thread Length E 1
Thread Class 2A F 7/8-14
Hex Size X 3/8
Bushing Length L 1.000
Bushing Diameter M 1.187
Eccentric offset N 0.030
Min. Boss Diameter 1 13/64
Mounting Bore Diameter (recommended) 1.190
**Recom. Torque Inch Pounds 1,500
Load Factor 0.984
