CSFHE-56-A

CSFHE-A -Standard Neverlube Cam Follower Crowned Eccentric

Please call 616-842-8760 for price and availability

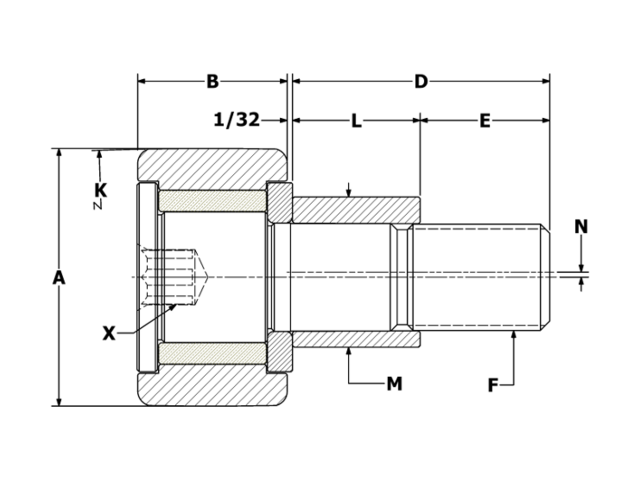

Specifications

New* CSFHE-56-A
Old CSFWE-56-A
Roller O.D. A 1.750
Roller Width B 1.000
Crown Radius K 20
Stud Diameter C 0.750
Stud Length D 1.750
Thread Length E 7/8
Thread Class 2A F 3/4-16
Hex Size X 3/8
Bushing Length L 0.875
Bushing Diameter M 1.000
Eccentric offset N 0.030
Min. Boss Diameter 1 3/64
Mounting Bore Diameter (recommended) 1.003
**Recom. Torque Inch Pounds 1,250
Load Factor 0.700

Downloads

CSFHE-56-A 2D CAD Drawing

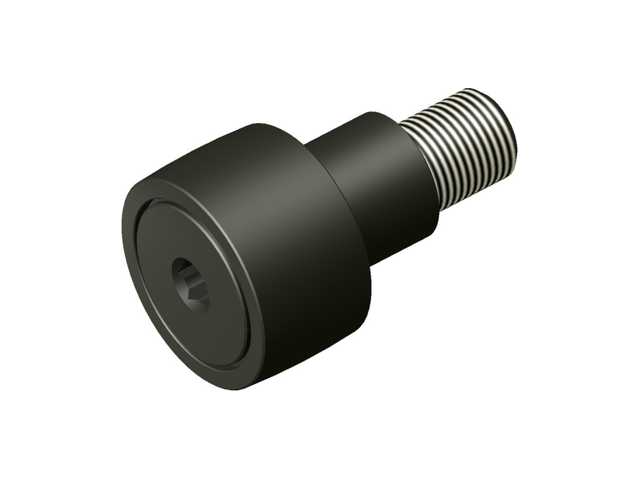

3D View
