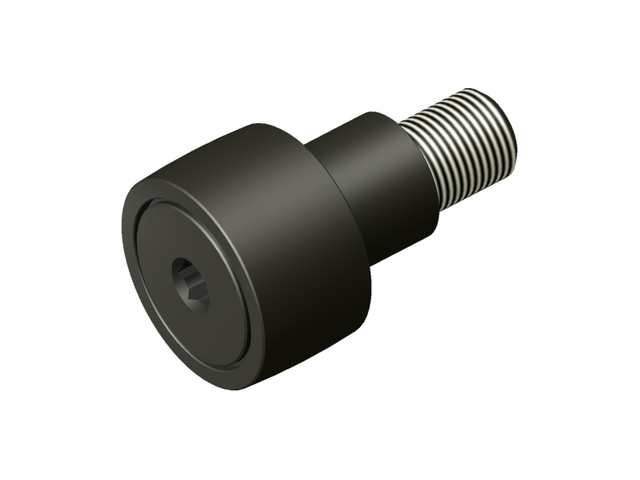

CSFHE-A -Standard Neverlube Cam Follower Crowned Eccentric

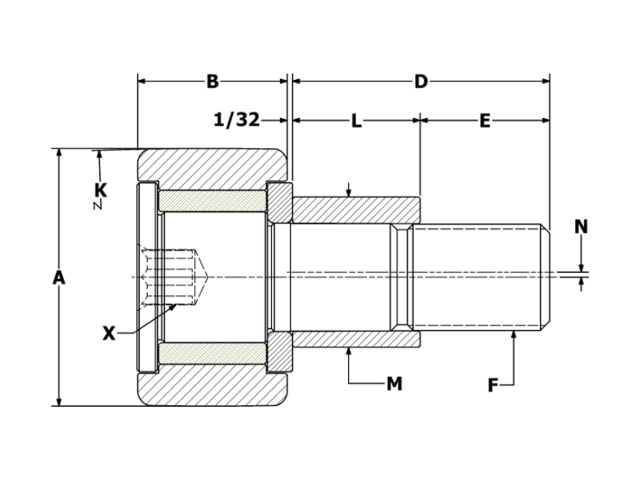

2D Drawings

CSFHE-48-A 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information


New* CSFHE-48-A
Old CSFWE-48-A
Roller O.D. A 1.500
Roller Width B 0.875
Crown Radius K 20
Stud Length D 1.500
M.E.T. E 3/4
Thread Class 2A F 5/8-18
Hex Size X 5/16
Bushing Length L 0.750
Bushing Diameter M 0.875
Eccentric offset N 0.030
Min. Boss Diameter 57/64
Mounting Bore 0.878
Torque (in-lb) 325
Load Factor 0.544

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
