CSFHE-28-A

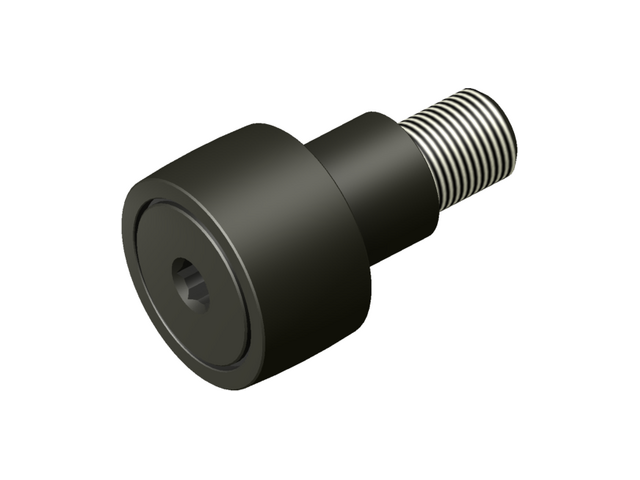

CSFHE-A -Standard Neverlube Cam Follower Crowned Eccentric

Please call 616-842-8760 for price and availability

Specifications

New* CSFHE-28-A
Old CSFWE-28-A
Roller O.D. A 0.875
Roller Width B 0.500
Crown Radius K 10
Stud Diameter C 0.375
Stud Length D 0.875
Thread Length E 3/8
Thread Class 2A F 3/8-24
Hex Size X 3/16
Bushing Length L 0.500
Bushing Diameter M 0.500
Eccentric offset N 0.015
Min. Boss Diameter 1/2
Mounting Bore Diameter (recommended) 0.503
**Recom. Torque Inch Pounds 95
Load Factor 0.164

Downloads

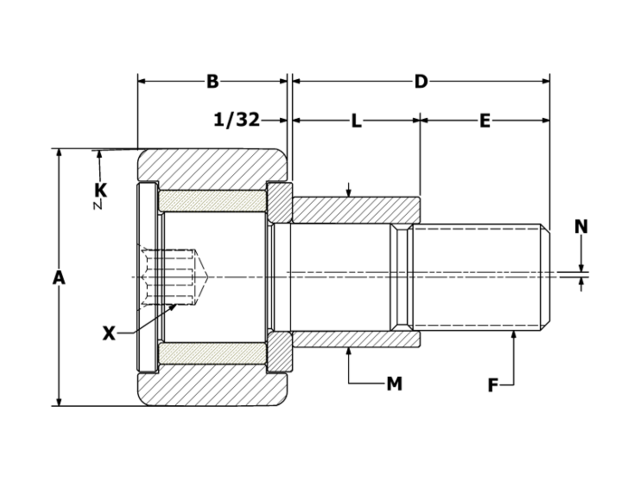

CSFHE-28-A 2D CAD Drawing

3D View
