CSFHE-16-A

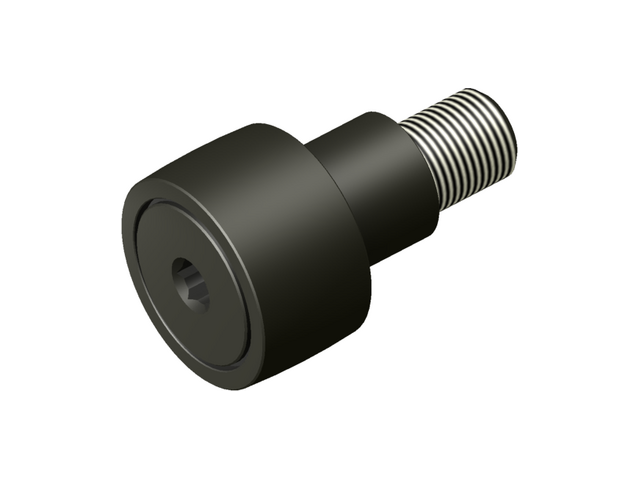

CSFHE-A -Standard Neverlube Cam Follower Crowned Eccentric

Please call 616-842-8760 for price and availability

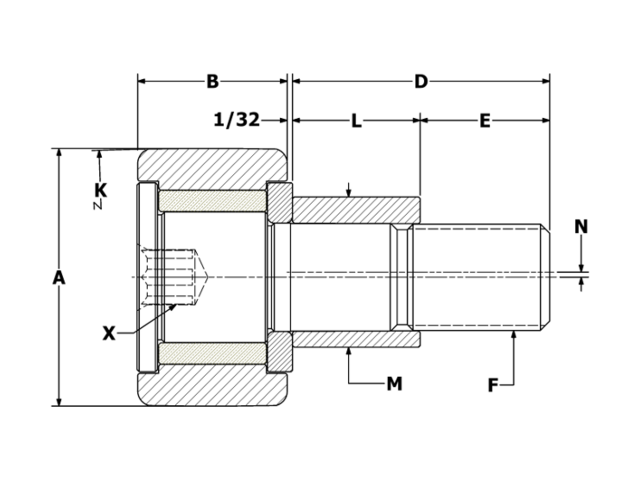

Specifications

New* CSFHE-16-A
Old CSFWE-16-A
Roller O.D. A 0.500
Roller Width B 0.375
Crown Radius K 7
Stud Diameter C 0.190
Stud Length D 0.625
Thread Length E 1/4
Thread Class 2A F 10-32
Hex Size X 1/8
Bushing Length L 0.375
Bushing Diameter M 0.250
Eccentric offset N 0.010
Min. Boss Diameter 19/64
Mounting Bore Diameter (recommended) 0.253
**Recom. Torque Inch Pounds 15
Load Factor 0.070
