CSFHE-128-B

CSFHE-A -Standard Neverlube Cam Follower Crowned Eccentric

2D Drawings

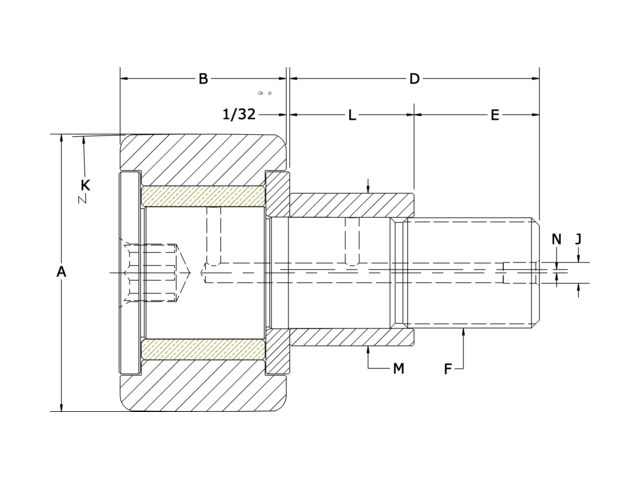

CSFHE-128-B 2D CAD Drawing

Specifications

New* CSFHE-128-B
Old CSFWE-128-A
Roller O.D. A 4.000
Roller Width B 2.250
Crown Radius K 30
Stud Length D 3.500
Thread Length E 1 1/2
Thread Class 2A F 1 1/2-12
Hex Size X 1/2
Bushing Length L 2.000
Bushing Diameter M 2.000
Eccentric offset N 0.060
Min. Boss Diameter 2 9/32
Mounting Bore Diameter (recommended) 2.003
**Recom. Torque Inch Pounds 2500
Load Factor 3.250

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
