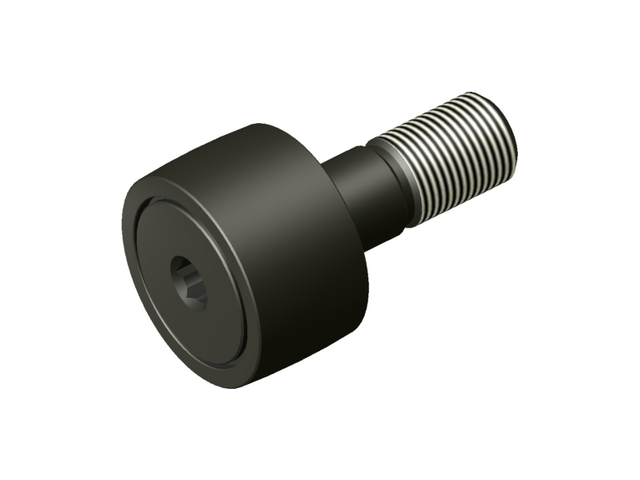

CSFH-80-B

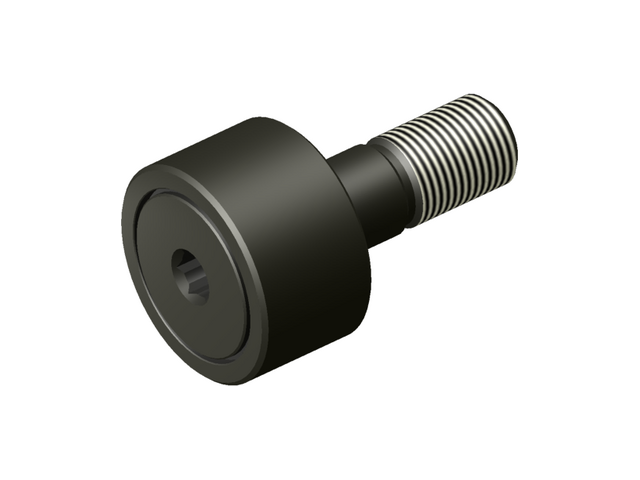

CSFH-A -Standard Neverlube Cam Follower Crowned

Please call 616-842-8760 for price and availability

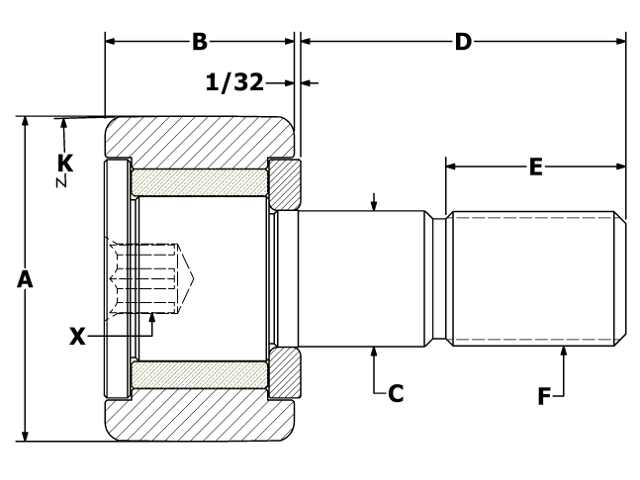

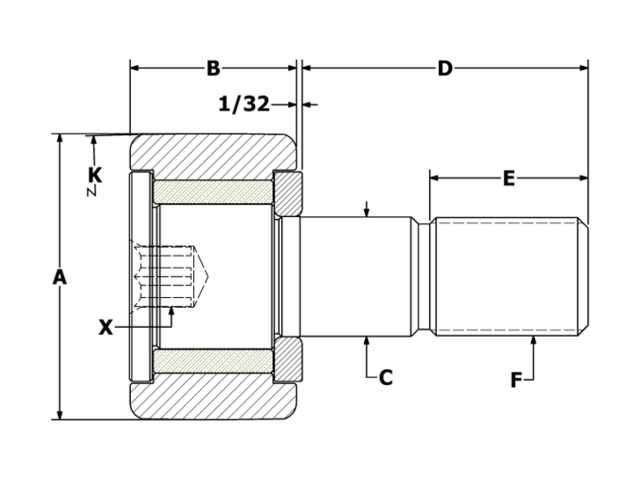

Specifications

New* CSFH-80-B
Old CSFH-80-A
Roller O.D. A 2.500
Roller Width B 1.500
Crown Radius K 30
Stud Diameter C 1.000
Stud Length D 2.250
M.E.T. E 1 1/8
Thread Class 2A F 1-14
Hex Size X 3/8
Min. Boss Diameter 1 5/16
Mounting Bore Diameter (recommended) 1.000
**Recom. Torque Inch Pounds 2,250
Load Factor 1.560

Downloads

CSFH-80-B 2D CAD Drawing

3D View
