CSFH-72-A

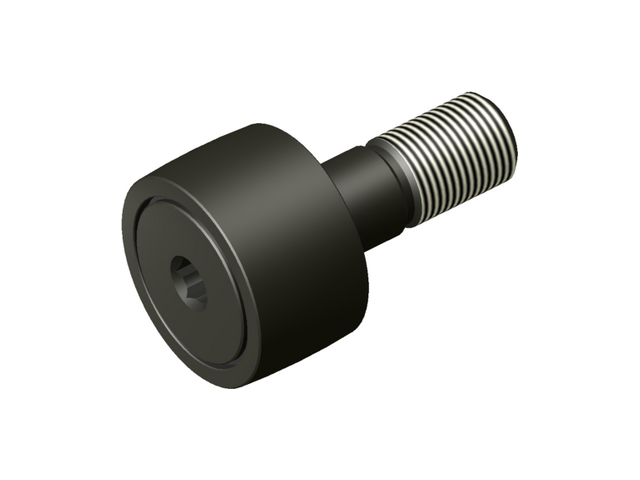

CSFH-A -Standard Neverlube Cam Follower Crowned

Please call 616-842-8760 for price and availability

Specifications

New* CSFH-72-A
Old CSFH-72-A

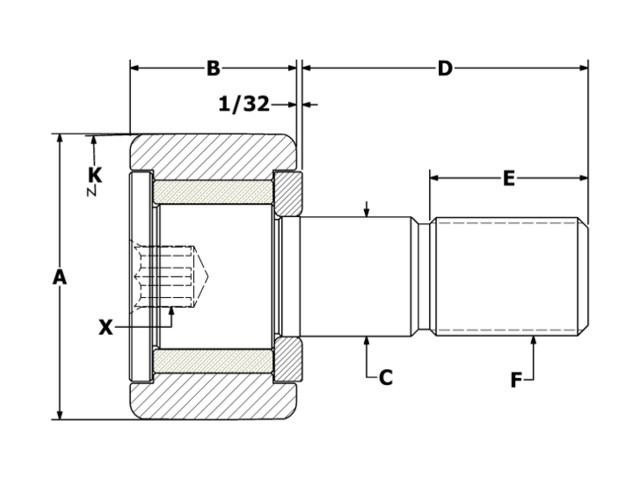

Roller O.D. A 2.250
Roller Width B 1.250
Crown Radius K 24
Stud Diameter C 0.875
Stud Length D 2.000
M.E.T. E 1
Thread Class 2A F 7/8-14
Hex Size X 3/8
Min. Boss Diameter 1 13/64
Mounting Bore Diameter (recommended) 0.875
**Recom. Torque Inch Pounds 1,500
Load Factor 0.984
