CSFH-60-A

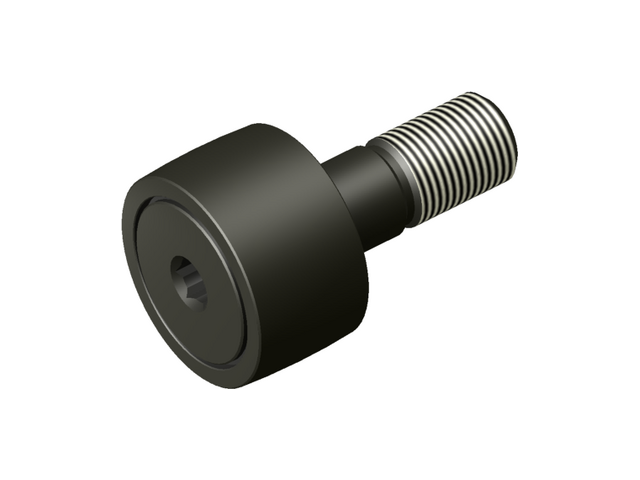

CSFH-A -Standard Neverlube Cam Follower Crowned

Please call 616-842-8760 for price and availability

Specifications

New* CSFH-60-A
Old CSFH-60-A
Roller O.D. A 1.875
Roller Width B 1.000
Crown Radius K 20
Stud Diameter C 0.750
Stud Length D 1.750
M.E.T. E 7/8
Thread Class 2A F 3/4-16
Hex Size X 3/8
Min. Boss Diameter 1 3/64
Mounting Bore Diameter (recommended) 0.750
**Recom. Torque Inch Pounds 1,250
Load Factor 0.700

Downloads

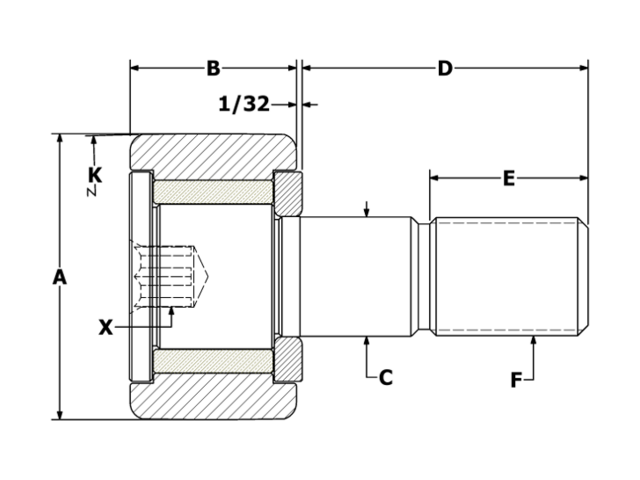

CSFH-60-A 2D CAD Drawing

3D View
