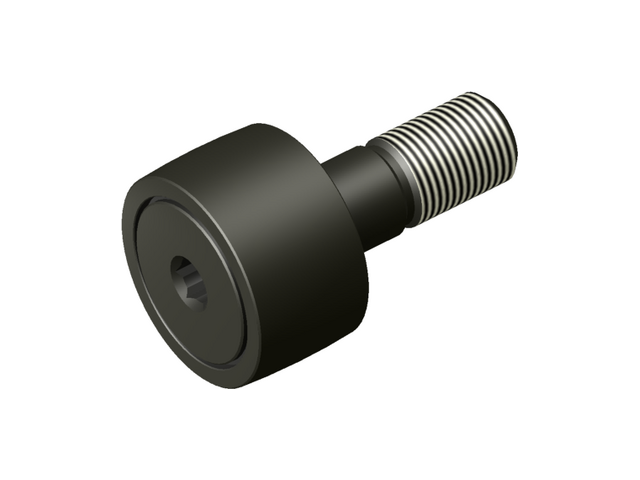

CSFH-56-A

CSFH-A -Standard Neverlube Cam Follower Crowned

PDF Download

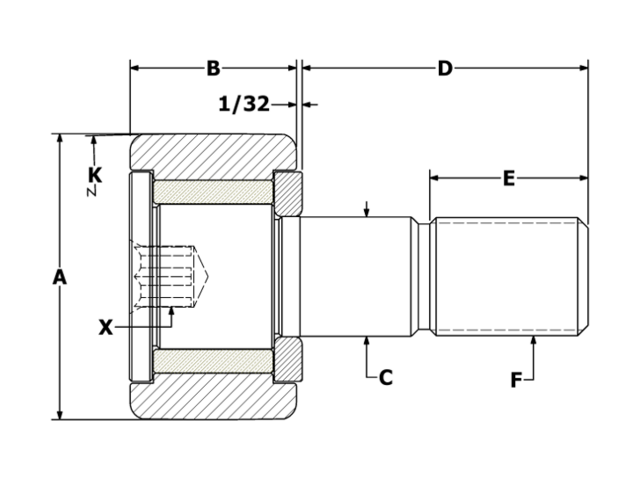

CSFH-56-A 2D CAD Drawing

Specifications

New* CSFH-56-A
Old CSFH-56-A
Roller O.D. A 1.750
Roller Width B 1.000
Crown Radius K 20
Stud Diameter C 0.750
Stud Length D 1.750
M.E.T. E 7/8
Thread Class 2A F 3/4-16
Hex Size X 3/8
Min. Boss Diameter 1 3/64
Mounting Bore Diameter (recommended) 0.750
**Recom. Torque Inch Pounds 625
Load Factor 0.700

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
