CSFH-16-A

CSFH-A -Standard Neverlube Cam Follower Crowned

Please call 616-842-8760 for price and availability

Specifications

New* CSFH-16-A
Old CSFH-16-A
Roller O.D. A 0.500
Roller Width B 0.375
Crown Radius K 7
Stud Diameter C 0.190
Stud Length D 0.625
M.E.T. E 1/4
Thread Class 2A F 10-32
Hex Size X 1/8
Min. Boss Diameter 19/64
Mounting Bore Diameter (recommended) 0.190
**Recom. Torque Inch Pounds 15
Load Factor 0.070

Downloads

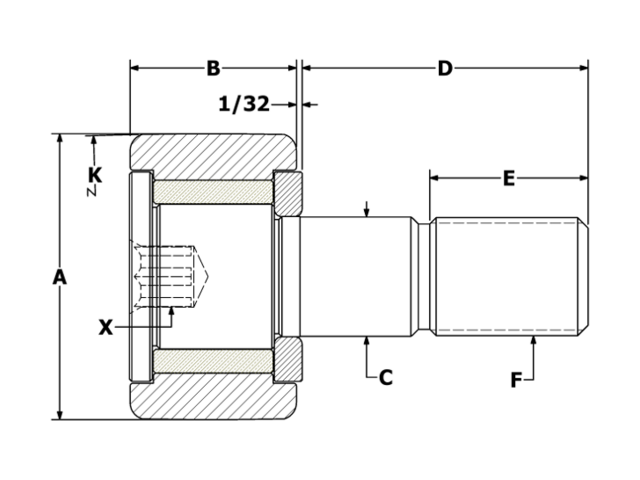

CSFH-16-A 2D CAD Drawing

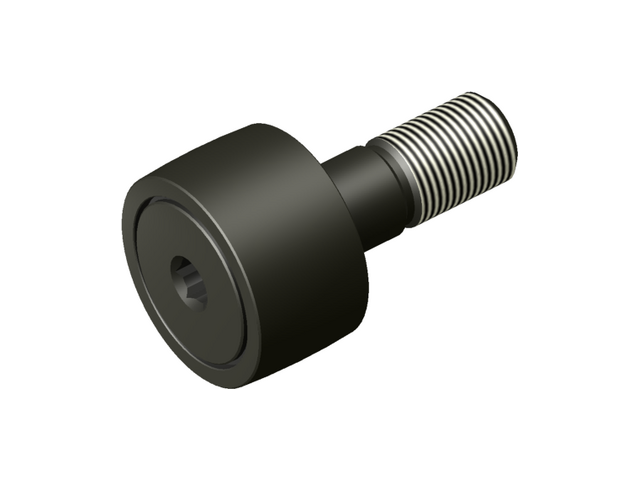

3D View
