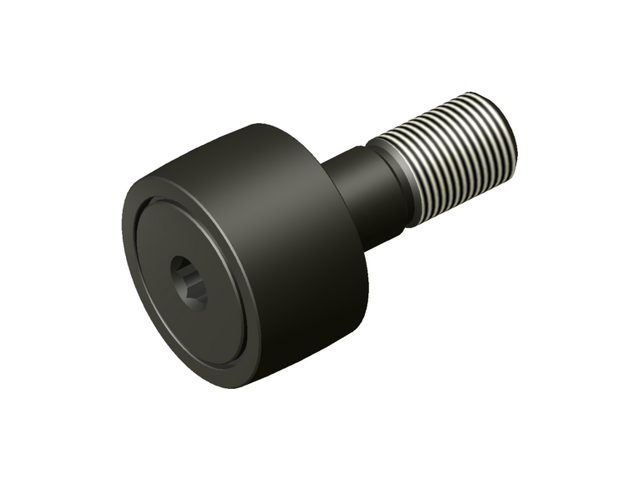

CSFH-A -Standard Neverlube Cam Follower Crowned

2D Drawings

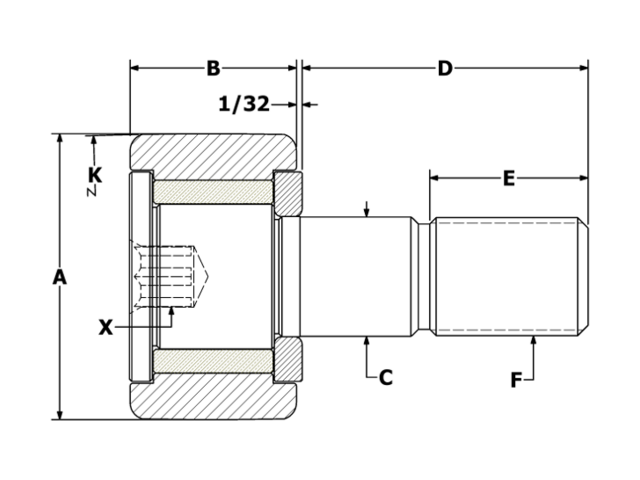

CSFH-128-B 2D CAD Drawing


New* CSFH-128-B
Old CSFH-128-A
Roller O.D. A 4.000
Roller Width B 2.250
Crown Radius K 30
Stud Diameter C 1.500
Stud Length D 3.500
M.E.T. E 1 1/2
Thread Class 2A F 1 1/2-12
Hex Size X 1/2
Min. Boss Diameter 2 9/32
Mounting Bore Diameter (recommended) 1.500
**Recom. Torque Inch Pounds 2500
Load Factor 3.250

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
