CSFH-112-B

CSFH-A -Standard Neverlube Cam Follower Crowned

Please call 616-842-8760 for price and availability

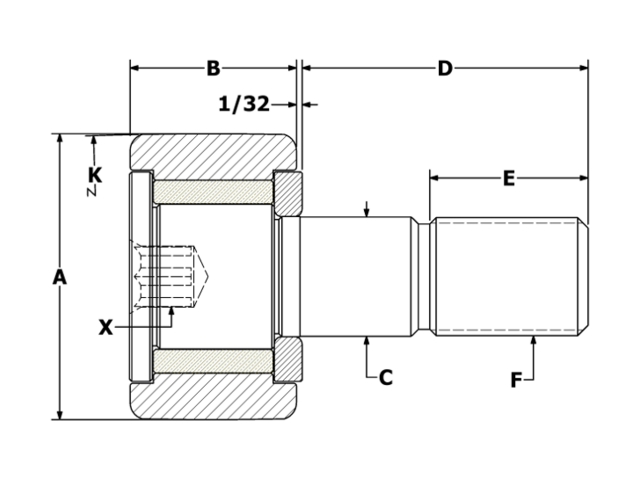

Specifications

New* CSFH-112-B
Old CSFH-112-A
Roller O.D. A 3.500
Roller Width B 2.000
Crown Radius K 30
Stud Diameter C 1.375
Stud Length D 2.750
M.E.T. E 1 3/8
Thread Class 2A F 1 3/8-12
Hex Size X 1/2
Min. Boss Diameter 1 59/64
Mounting Bore Diameter (recommended) 1.375
**Recom. Torque Inch Pounds 4,200
Load Factor 2.700

Downloads

CSFH-112-B STP File

CSFH-112-B IGES File

CSFH-112-B PDF File

3D View
