CSCH-80-SB

CSCH-SB -Standard Stainless Heavy Duty Crowned Hexed Sealed Cam Follower

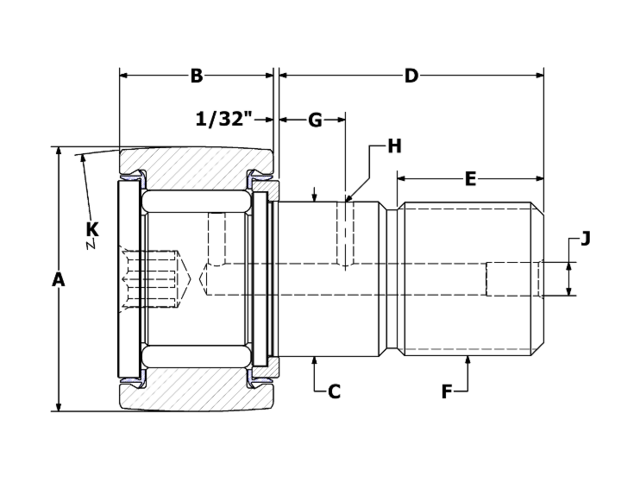

Specifications

ID CSCH-80-SB
Roller O.D. A 2.500
Roller Width B 1.500
Crown Radius K 30
Stud Diameter C 1.250
Stud Length D 2.250
M.E.T. E 1 1/8
Thread Class 2A F 1 1/4-12
Oil Hole Center G 9/16
Oil Hole Diameter H 1/8
Lube Fitting Size J 3/16
Min. Boss Diameter 1 5/16
Mounting Bore Diameter (recommended) 1.250
**Recom. Torque Inch Pounds 2,250
Max Static Capacity (lbf) 21,379
Basic Dynamic Rating (lbf) 10,532

Downloads

CSCH-80-SB STP File

CSCH-80-SB IGES File

CSCH-80-SB PDF File

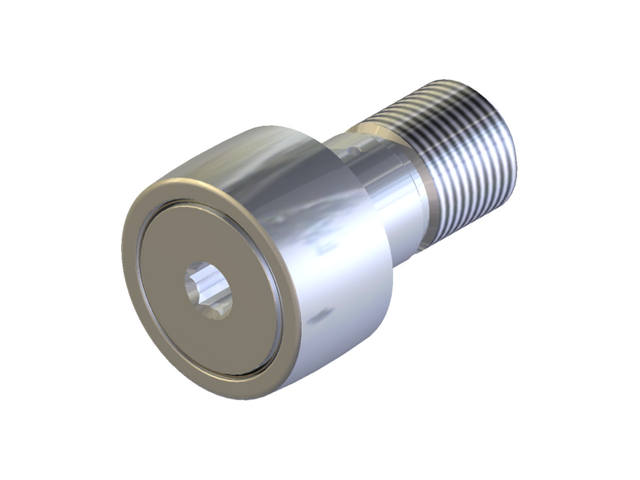

3D View
