CSCH-24-SB

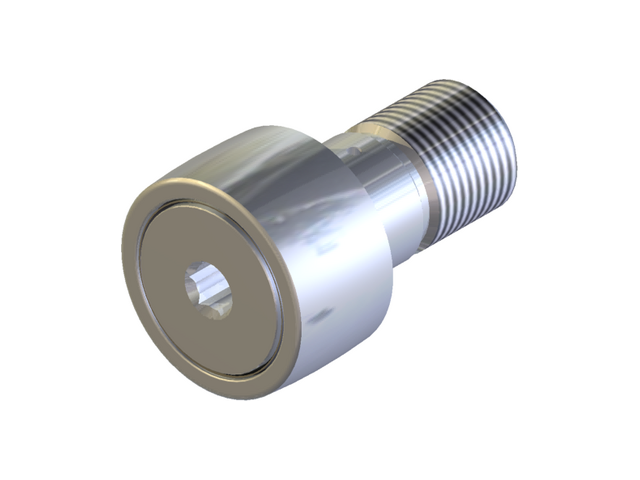

CSCH-SB -Standard Stainless Heavy Duty Crowned Hexed Sealed Cam Follower

Specifications

ID CSCH-24-SB

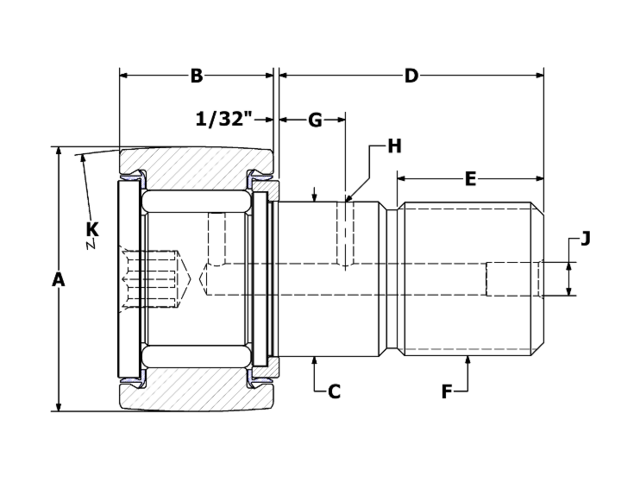

Roller O.D. A 0.750
Roller Width B 0.500
Crown Radius K 10
Stud Diameter C 0.4375
Stud Length D 0.875
M.E.T. E 3/8
Thread Class 2A F 7/16-20
Oil Hole Center G 1/4
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Min. Boss Diameter 1/2
Mounting Bore Diameter (recommended) 0.438
**Recom. Torque Inch Pounds 76
Max Static Capacity (lbf) 2,891
Basic Dynamic Rating (lbf) 1,328

Downloads

CSCH-24-SB STP File

CSCH-24-SB IGES File

CSCH-24-SB PDF File

3D View
