CSCE-64-SB

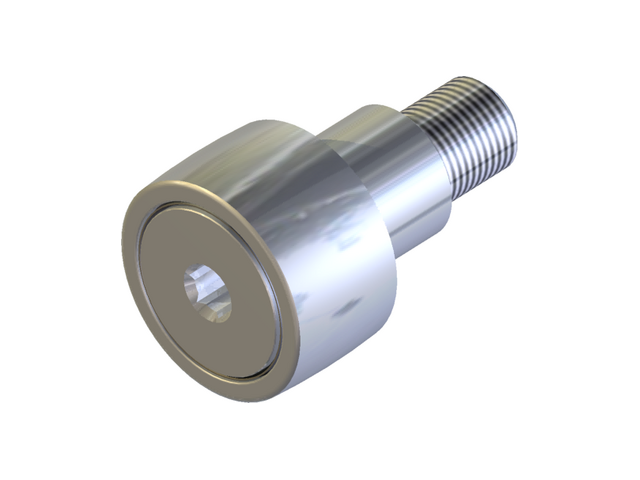

CSCE-SB -Standard Stainless Crowned Hexed Eccentric Sealed Cam Follower

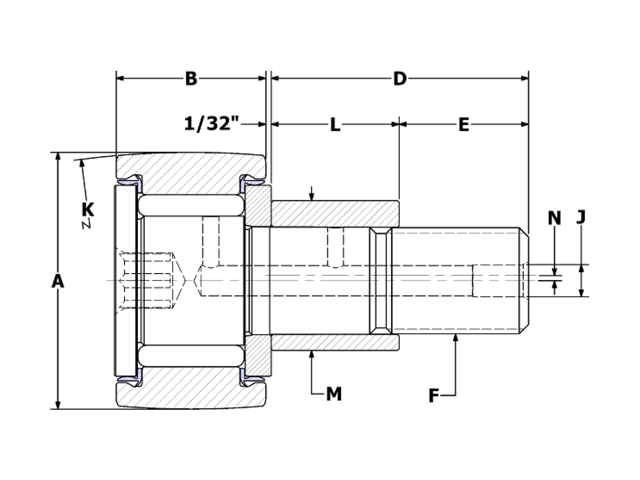

Specifications

ID CSCE-64-SB
Roller O.D. A 2.000
Roller Width B 1.250
Crown Radius K 24
Stud Diameter C 0.875
Stud Length D 2.000
Thread Length E 1
Thread Class 2A F 7/8-14
Oil Hole Center G 1/2
Oil Hole Diameter H 1/8
Lube Fitting Size J 3/16
Bushing Length L 1.000
Bushing Diameter M 1.187
Eccentric offset N 0.030
Min. Boss Diameter 1 13/64
Mounting Bore Diameter (recommended) 1.190
**Recom. Torque Inch Pounds 750
Max Static Capacity (lbf) 10,570
Basic Dynamic Rating (lbf) 8,090
Limiting Speed (RPM) 1,400
