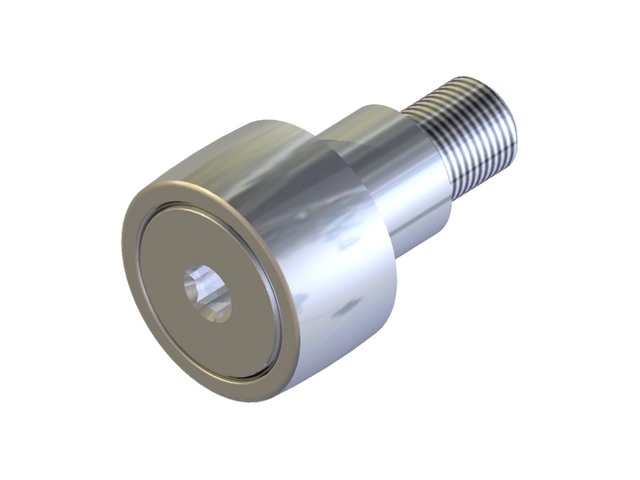

CSCE-SB -Standard Stainless Crowned Hexed Eccentric Sealed Cam Follower

2D Drawings

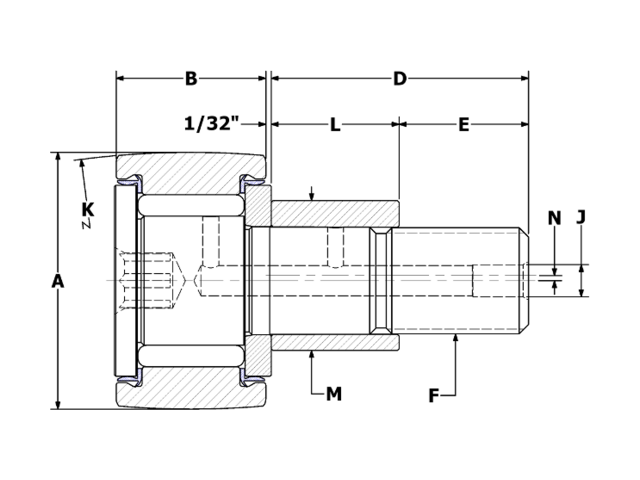

CSCE-52-SB 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information


Roller O.D. A 1.625
Roller Width B 0.875
Crown Radius K 20
Stud Length D 1.500
Thread Length E 3/4
Thread Class 2A F 5/8-18
Oil Hole Center G 3/8
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Bushing Length L 0.750
Bushing Diameter M 0.875
Eccentric offset N 0.030
Min. Boss Diameter 57/64
Mounting Bore Diameter (recommended) 0.878
**Recom. Torque Inch Pounds 325
Max Static Capacity (lbf) 4,000
Basic Dynamic Rating (lbf) 4,350
Limiting Speed (RPM) 2,350

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
