CSCE-36-SB

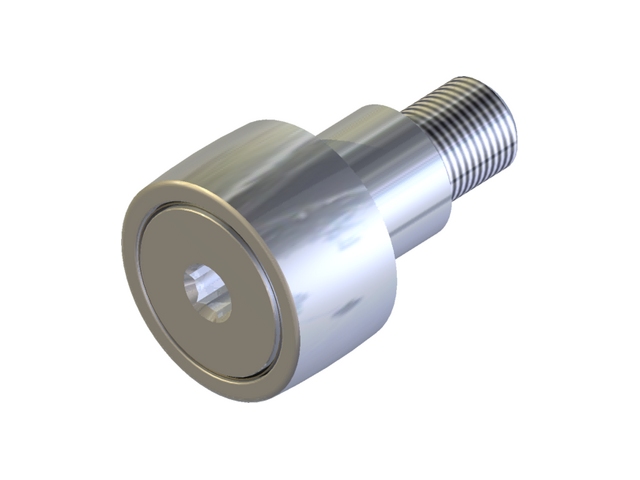

CSCE-SB -Standard Stainless Crowned Hexed Eccentric Sealed Cam Follower

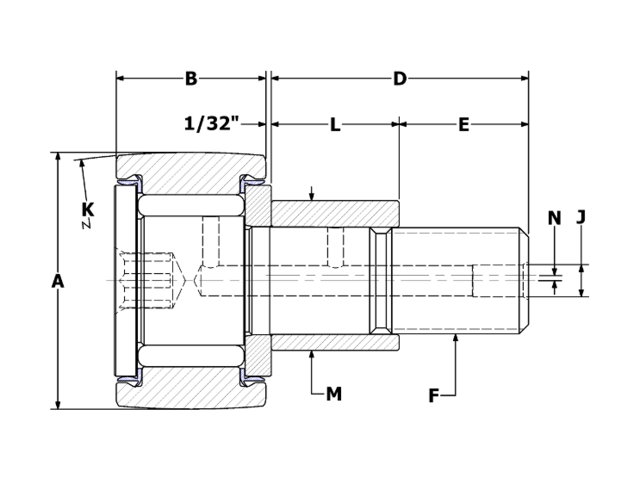

Specifications

ID CSCE-36-SB
Roller O.D. A 1.125
Roller Width B 0.625
Crown Radius K 12
Stud Diameter C 0.4375
Stud Length D 1.000
Thread Length E 1/2
Thread Class 2A F 7/16-20
Oil Hole Center G 1/4
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Bushing Length L 0.500
Bushing Diameter M 0.625
Eccentric offset N 0.030
Min. Boss Diameter 41/64
Mounting Bore Diameter (recommended) 0.628
**Recom. Torque Inch Pounds 125
Max Static Capacity (lbf) 3,060
Basic Dynamic Rating (lbf) 2,225
