CRTE-24-SB

product photo crte sb

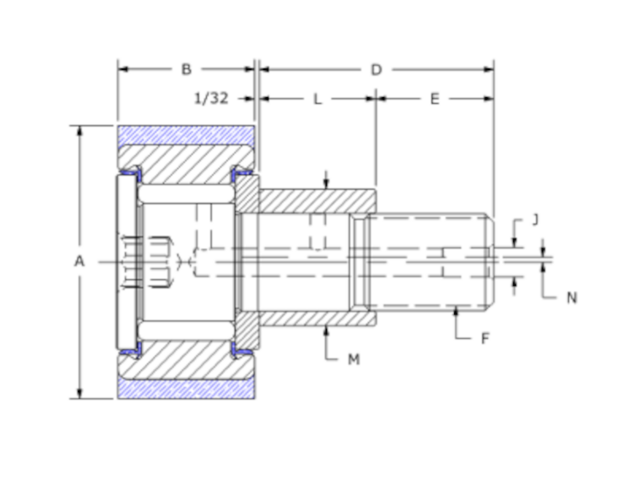

product diagram crte sb

CRTE-SB -Standard Hexed Urethane Eccentric Sealed Cam Follower

$67.07

CRTE-24-SB

104 in stock

Specifications

AttributeCalloutValue
Roller O.D. A 0.500 in
Roller Width B 0.375 in
Stud Length D 0.625 in
M.E.T. E 1/4 in
Thread Class 2A F 10-32
Lube Fitting Size J 1/8 in
Bushing Length L 0.375 in
Bushing Diameter M 0.250 in
Eccentric Offset N 0.010 in
Hex Size X 1/8 in
Approx Weight 0.012 lbs
Min. Boss Diameter 19/64 in
Mounting Bore 0.253 in
Torque 8 in-lb

Custom Application

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!

Call 616.842.8760 and speak with one of our customer service reps for more information.
