CRT-72-SB

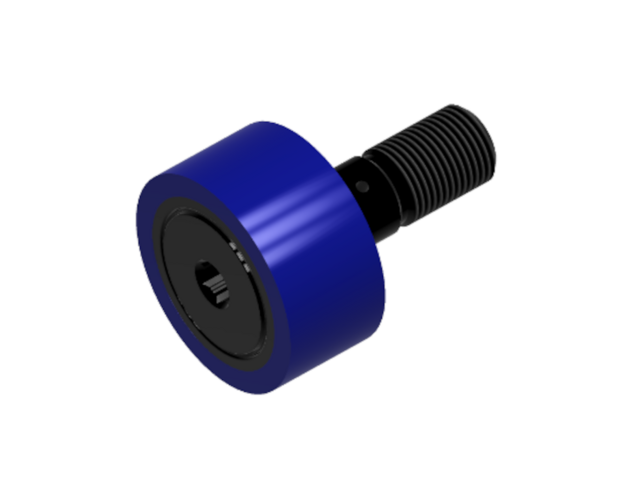

CRT-SB -Standard Urethane Cam Follower

Please call 616-842-8760 for price and availability

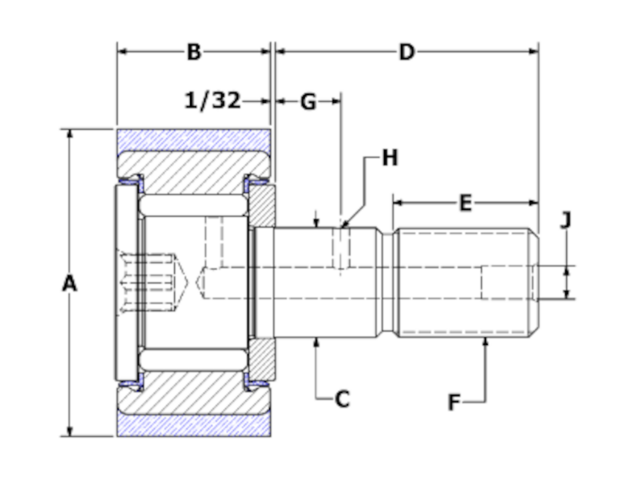

Specifications

ID CRT-72-SB
Roller O.D. A 2.250
Roller Width B 1.250
Stud Diameter C 0.875
Stud Length D 2.000
M.E.T. E 1
Thread Class 2A F 7/8-14
Oil Hole Center G 1/2
Oil Hole Diameter H 1/8
Lube Fitting Size J 3/16
Min. Boss Diameter 1 13/64
Mounting Bore Diameter (recommended) 0.875
**Recom. Torque Inch Pounds 95

Downloads

CRT-72-SB 2D CAD Drawing

3D View
