CRT-56-SB

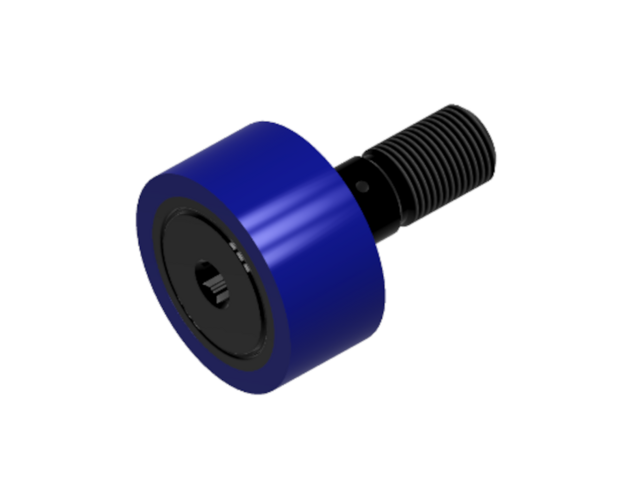

CRT-SB -Standard Urethane Cam Follower

PDF Download

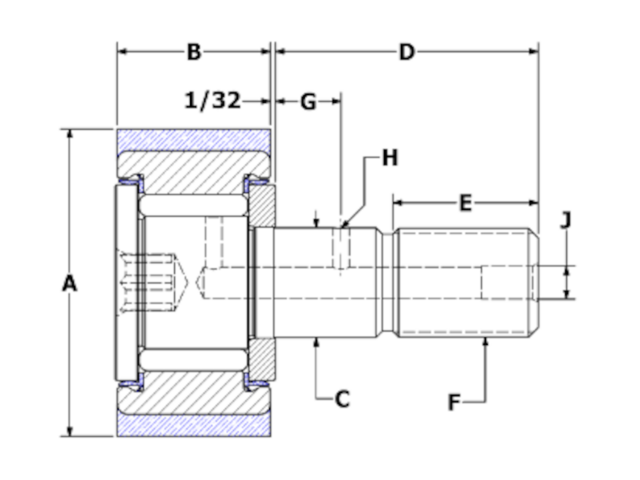

CRT-56-SB 2D CAD Drawing

Specifications

ID CRT-56-SB
Roller O.D. A 1.750
Roller Width B 0.875
Stud Diameter C 0.625
Stud Length D 1.500
M.E.T. E 3/4
Thread Class 2A F 5/8-18
Oil Hole Center G 3/8
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Min. Boss Diameter 57/64
Mounting Bore Diameter (recommended) 0.625
**Recom. Torque Inch Pounds 325

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
