CRT-48-SB

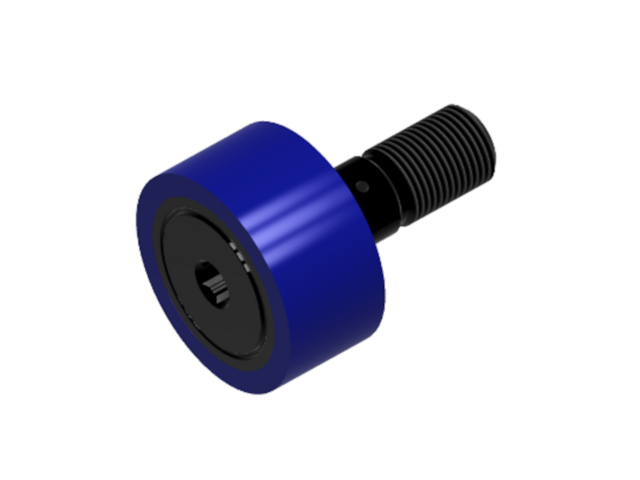

CRT-SB -Standard Urethane Cam Follower

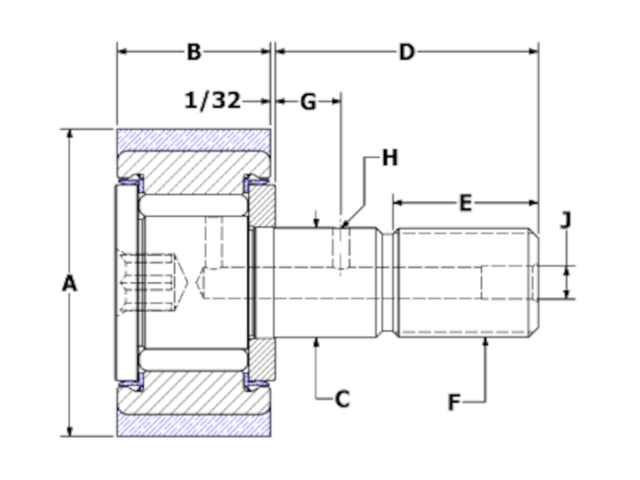

Specifications

ID CRT-48-SB
Roller O.D. A 1.500
Roller Width B 0.750
Stud Diameter C 0.500
Stud Length D 1.250
M.E.T. E 5/8
Thread Class 2A F 1/2-20
Oil Hole Center G 5/16
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Min. Boss Diameter 49/64
Mounting Bore Diameter (recommended) 0.500
**Recom. Torque Inch Pounds 35

Downloads

CRT-48-SB STP File

CRT-48-SB IGES File

CRT-48-SB PDF File

3D View
