CRT-40-SB

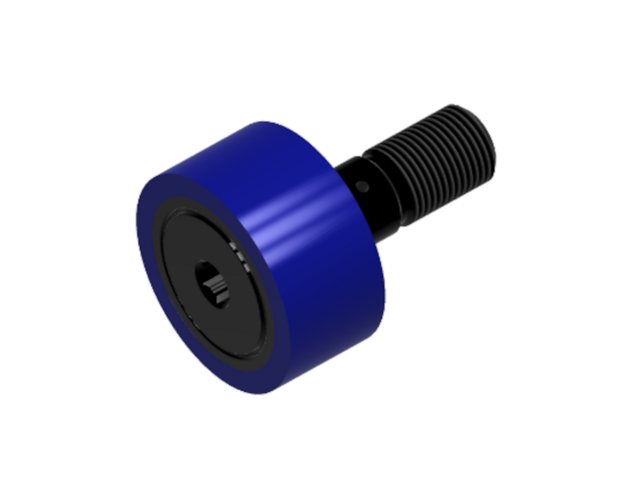

CRT-SB -Standard Urethane Cam Follower

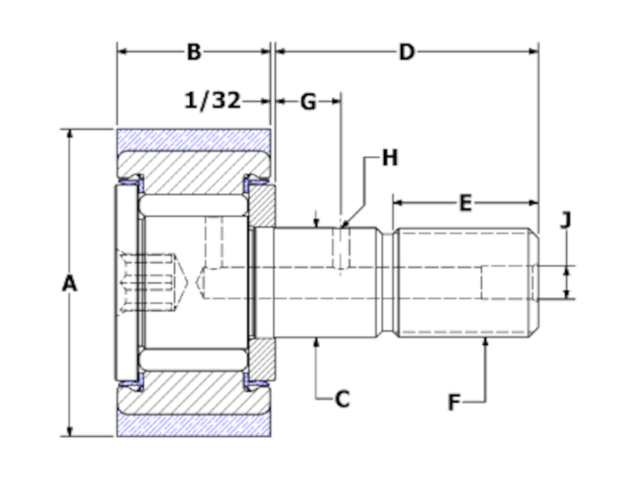

Specifications

ID CRT-40-SB
Roller O.D. A 1.250
Roller Width B 0.625
Stud Diameter C 0.438
Stud Length D 1.000
M.E.T. E 1/2
Thread Class 2A F 7/16-20
Oil Hole Center G 1/4
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Min. Boss Diameter 41/64
Mounting Bore Diameter (recommended) 0.438
**Recom. Torque Inch Pounds 35
