CRT-32-SB

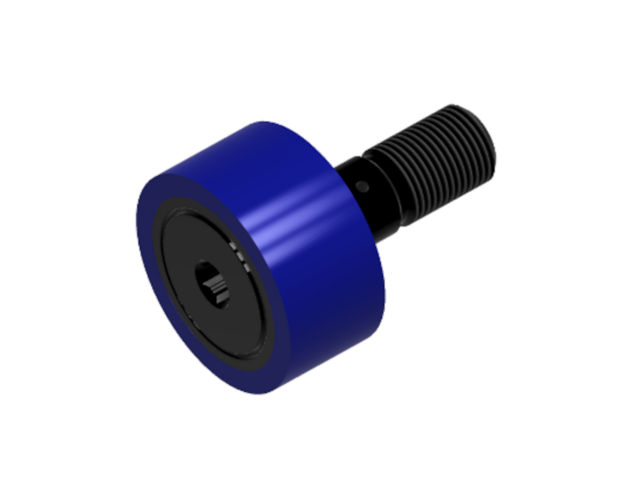

CRT-SB -Standard Urethane Cam Follower

Please call 616-842-8760 for price and availability

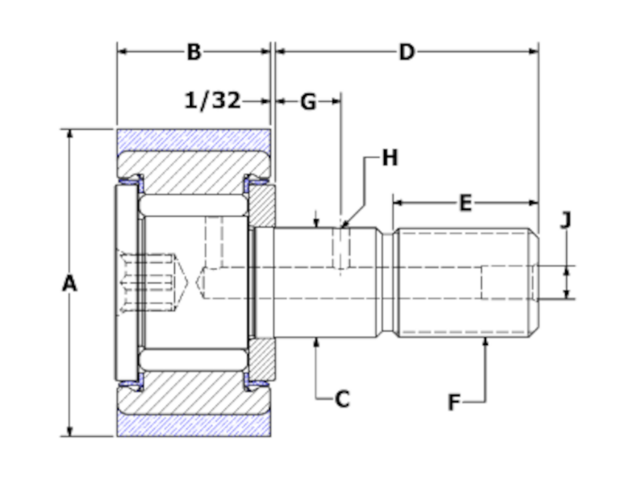

Specifications

ID CRT-32-SB
Roller O.D. A 1.000
Roller Width B 0.500
Stud Diameter C 0.375
Stud Length D 0.875
M.E.T. E 3/8
Thread Class 2A F 3/8-24
Oil Hole Center G 1/4
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Min. Boss Diameter 1/2
Mounting Bore Diameter (recommended) 0.375
**Recom. Torque Inch Pounds 15

Downloads

CRT-32-SB 2D CAD Drawing

3D View
