CRT-24-SB

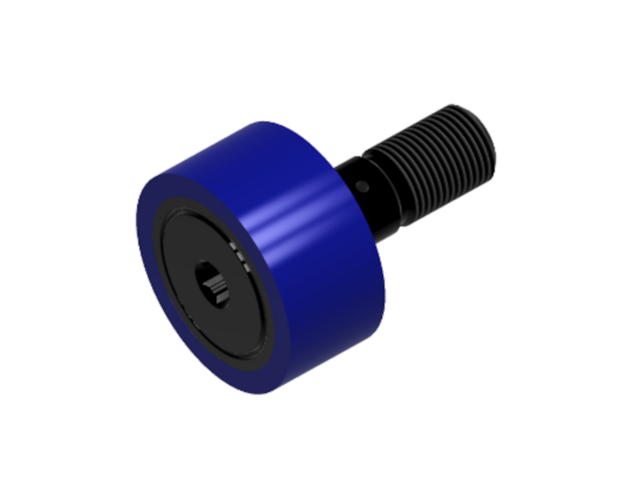

CRT-SB -Standard Urethane Cam Follower

Please call 616-842-8760 for price and availability

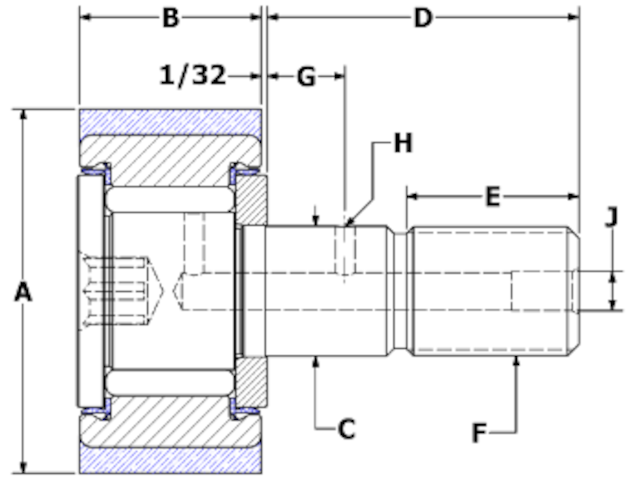

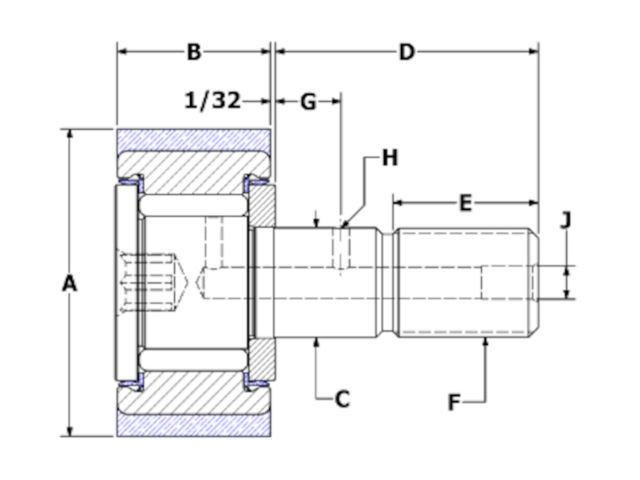

Specifications

ID CRT-24-SB
Roller O.D. A 0.750
Roller Width B 0.375
Stud Diameter C 0.190
Stud Length D 0.625
M.E.T. E 1/4
Thread Class 2A F 10-32
Oil Hole Center G ~
Oil Hole Diameter H ~
Lube Fitting Size J ~
Min. Boss Diameter 19/64
Mounting Bore Diameter (recommended) 0.190
**Recom. Torque Inch Pounds 15

Downloads

CRT-24-SB 2D CAD Drawing

3D View
