CPHRE-250-A

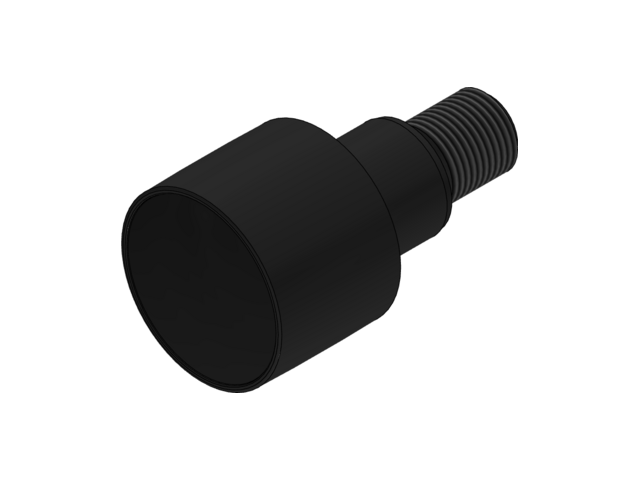

CPHRE-A -Plain High Roller Crowned Eccentric

PDF Download

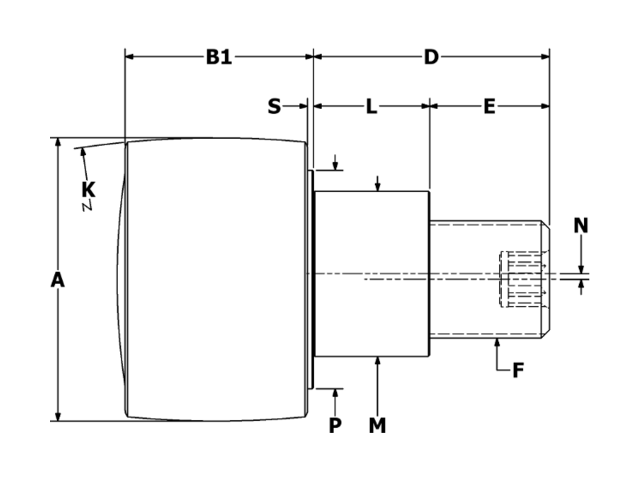

CPHRE-250-A 2D CAD Drawing

Specifications

ID CPHRE-250-A
Roller O.D. A 2.500
Crown K 30
Roller B1 1.687
Stud Length D 2.250
Thread Length E 1.145
Thread Class 2A F 1-14
Eccentric Sleeve Length L 1.105
Eccentric Sleeve Diameter M 1.375
Eccentric Offset N 0.030
Endplate Diameter P 1.687
Endplate Stickout S 0.062
Basic Dynamic Rating (lbf) 5,190
Dynamic Thrust Load (lbf) 1,400
Max Static Capacity (lbf) 2,270
Ball(BB) or Tapered(TRB) Roller Bearing BB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
