CNYR-96

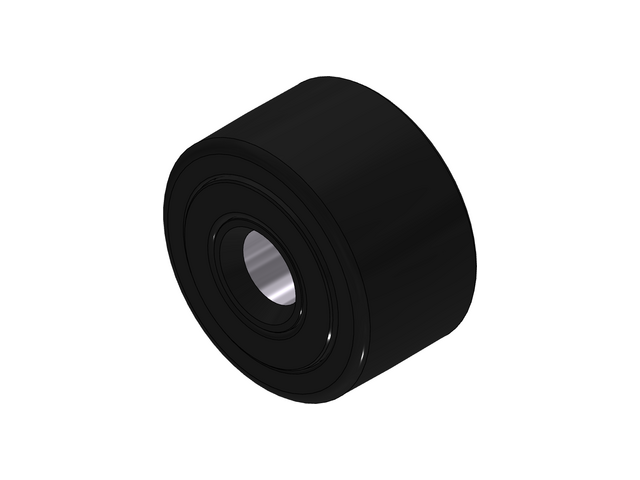

CNYR -Standard Neverlube Cam Yolk Roller Crowned

Please call 616-842-8760 for price and availability

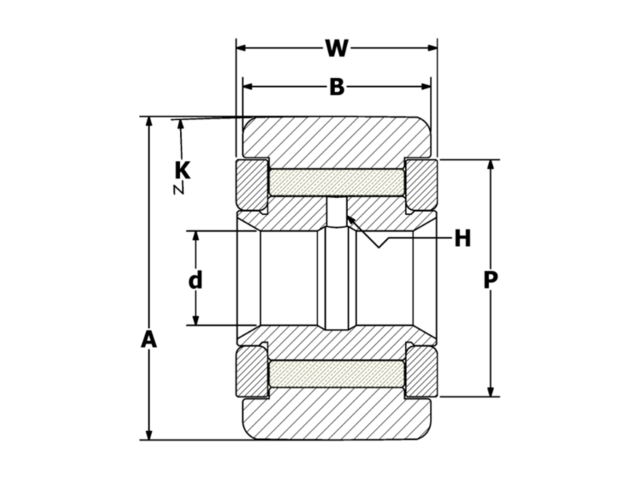

Specifications

ID CNYR-96
Roller O.D. A 3.000
Roller Width B 1.750
Crown Radius K 30
Bore Diameter d 1.000
Overall Width W 1.8125
Oil Hole Diameter H 1/8
Min. Boss Diameter P 1 3/4
Shaft Diameter (recommended) 0.9996
Load Factor 2.000

Downloads

CNYR-96 STP File

CNYR-96 IGES File

CNYR-96 PDF File

3D View
