CNYR-88

CNYR -Standard Neverlube Cam Yolk Roller Crowned

Please call 616-842-8760 for price and availability

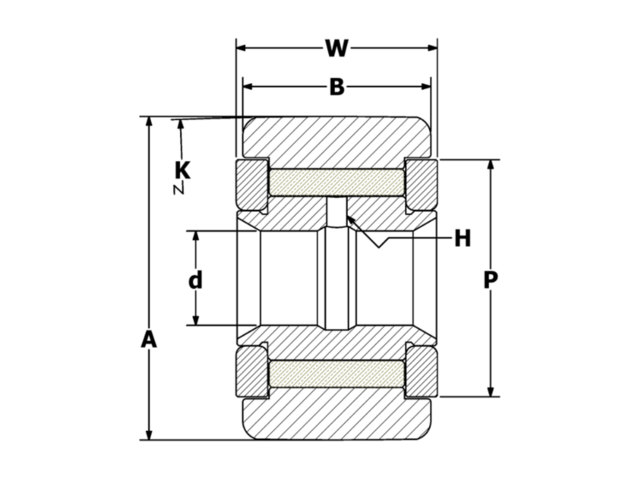

Specifications

ID CNYR-88
Roller O.D. A 2.750
Roller Width B 1.500
Crown Radius K 30
Bore Diameter d 0.750
Overall Width W 1.5625
Oil Hole Diameter H 1/8
Min. Boss Diameter P 1 5/16
Shaft Diameter (recommended) 0.7497
Load Factor 2.000

Downloads

CNYR-88 STP File

CNYR-88 IGES File

CNYR-88 PDF File

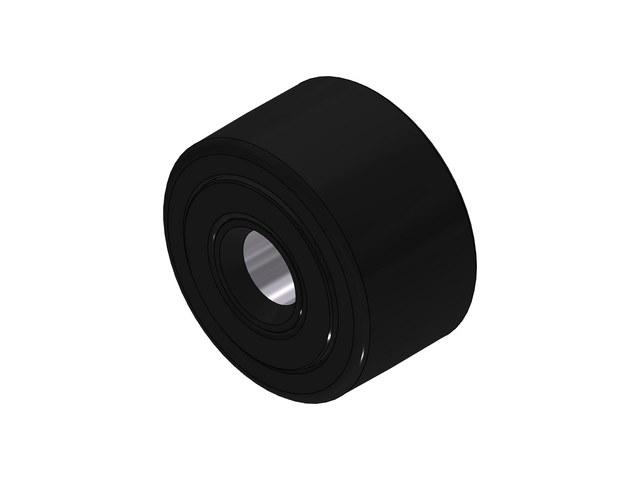

3D View
