CNYR-72

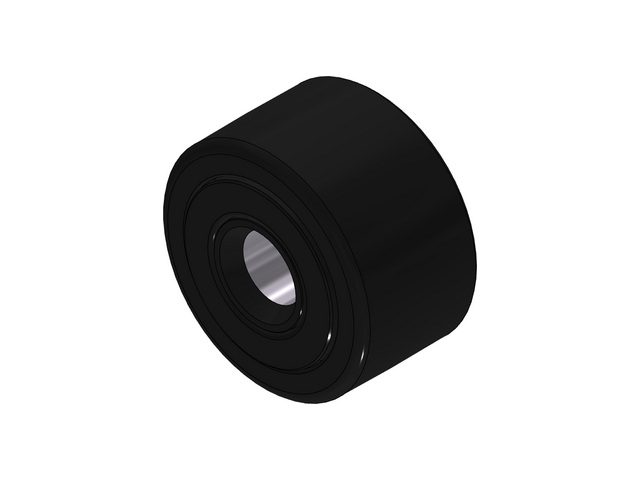

CNYR -Standard Neverlube Cam Yoke Roller Crowned

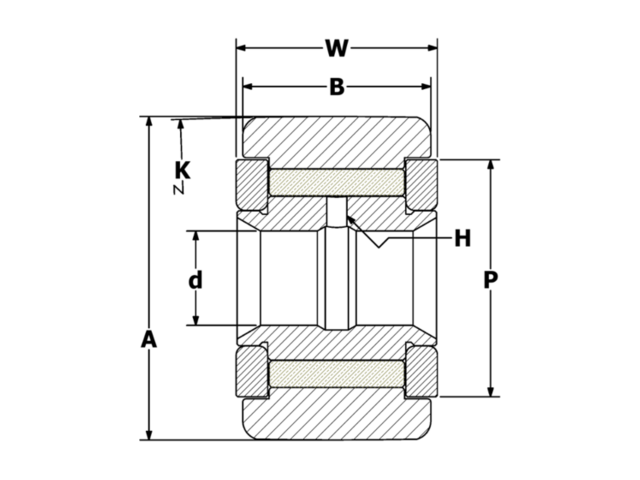

2D Drawings

CNYR-72 2D CAD Drawing

Specifications

ID CNYR-72
Roller O.D. A 2.250
Roller Width B 1.250
Crown Radius K 24
Bore Diameter d 0.625
Overall Width W 1.3125
Oil Hole Diameter H 1/8
Min. Boss Diameter P 1 13/64
Shaft Diameter (recommended) 0.6247
Load Factor 0.928

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
