CNYR-52

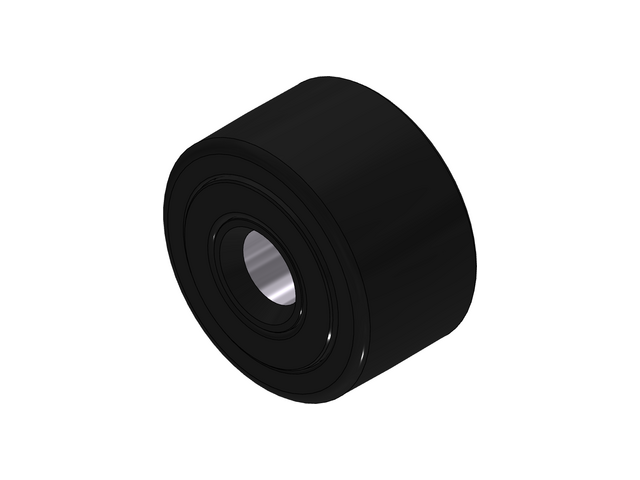

CNYR -Standard Neverlube Cam Yolk Roller Crowned

Please call 616-842-8760 for price and availability

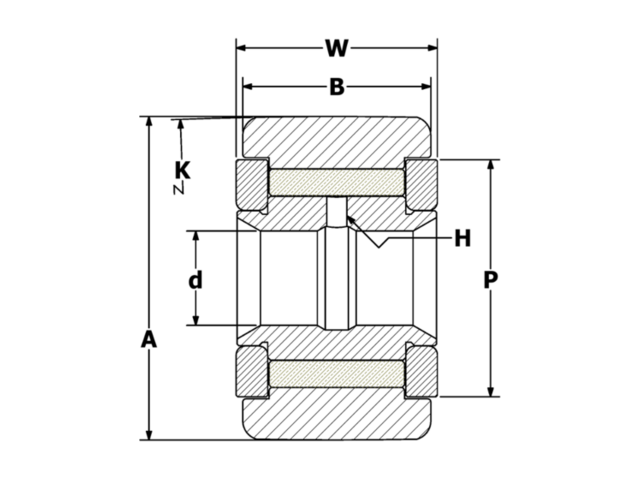

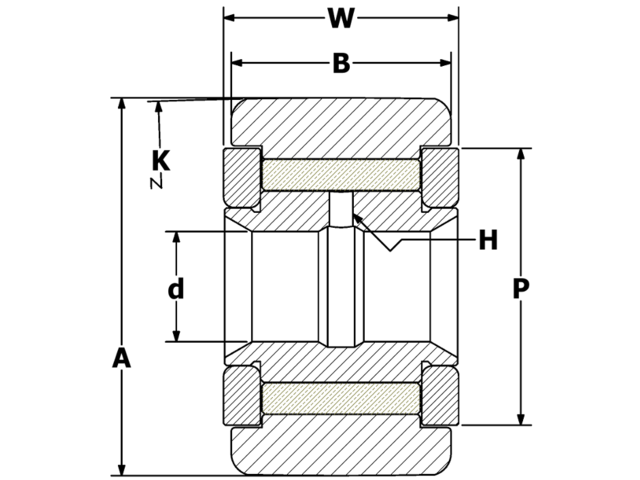

Specifications

ID CNYR-52
Roller O.D. A 1.625
Roller Width B 0.875
Crown Radius K 20
Bore Diameter d 0.438
Overall Width W 0.9375
Oil Hole Diameter H 3/32
Min. Boss Diameter P 57/64
Shaft Diameter (recommended) 0.4372
Load Factor 0.510

Downloads

CNYR-52 STP File

CNYR-52 IGES File

CNYR-52 PDF File

3D View
